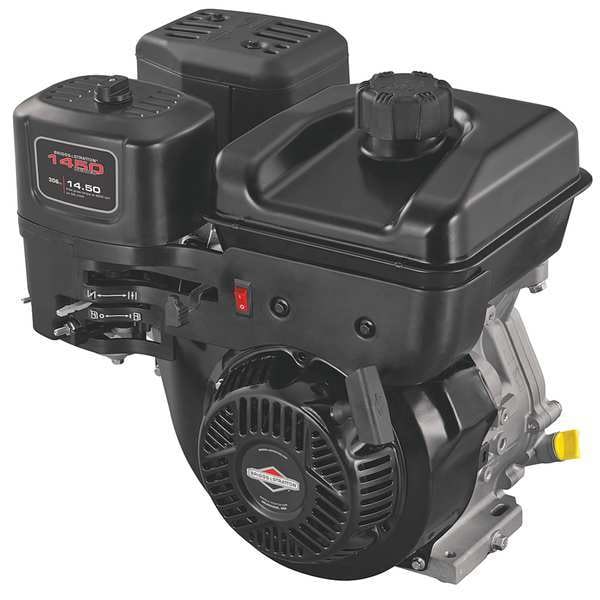

Gas Engine, 3750 rpm, 2.51 in. Shaft L

  • Mfr # 19N132-0051-F1
  • Zoro # G0313708
product price:
$
930.99
/ea
Free Shipping & Returns

Key Features

Type
4 cycle
Gross Torque
14.5 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
3/4
Shaft Length (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
19N132-0051-F1
Zoro #
G0313708
UPC #
472820379114
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
3/4
Shaft Length (In.)
2 1/2 in
Overall Depth Facing PTO (In.)
11 in
Shaft Height (In.)
5.25 in
Overall Depth (In.)
11 in
PTO Shaft Height (In.)
5.25 in
PTO Shaft Length (In.)
2.51 in
Overall Width (In.)
17 in
Overall Height (In.)
16.5 in
PTO Shaft Dia. (In.)
0.75 in
Overall Height
16 1/2 in
Overall Width
17 in
PTO Shaft Diameter
3/4 in
Overall Depth
11 in
Shaft Length
2 1/2 in
PTO Shaft Length
2 1/2 in
PTO Shaft Height
5 1/4 in
Shaft Height
5 1/4 in
Shaft Diameter
3/4 in
Overall Depth Facing PTO
11 in

Details

Type
4 cycle
Gross Torque
14.5 lb-ft
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
3.2 qt
Shaft Key (In.)
3/16 in
Ignition Type
Magnetron Electronic
Start
Recoil
Application
Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers
Low Oil Shut Down
Yes
4 Cycle Engine
yes
Series
XR Professional 1450
Agency Compliance
ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines
Recommended Use
Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers
Features
Cast Iron Cylinder Sleeve for Extended Life
Bearings
Ball, PTO
Overall H Facing PTO (In.)
16.5 in
Design
Overhead Valve
RPM
3,750 RPM
Function
General Purpose
Cylinders
Cast Iron
Gear Box
No
PTO Shaft Key (In.)
0.187 in
Includes
Low Oil Sensor, Metal Tank
Engine RPM
3,750 RPM
Muffler
Yes
Starter Type
Recoil
Maintenance Frequency
Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually, Use Briggs Fuel Treatment to Avoid Carburetion Issues Caused By Stale Fuel
Item
Gasoline Engine
Overall W Facing PTO (In.)
17 in
Rotation
CCW
Air Filter
Pleated Paper with Foam Pre Cleaner
Air Cleaner Type
Dual Clean
Shaft Configuration
Keyed 3/16", Tapped 3/8"-24
Standards
ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines
Shaft Key
3/16 in
Engine Displacement
305 cc
Engine Cycle
4-Cycle
Start Type
Recoil
Engine Brand
Briggs and Stratton
Overall H Facing PTO
16 1/2 in
CARB Compliant
CARB Compliant
Number of Cylinders
1
Overall W Facing PTO
17 in
Horsepower
10 hp
Engine Series
XR Professional Series
Maximum Speed
3,750 RPM
Fuel Tank Capacity
3.2 qt
PTO Shaft Key
3/16 in

Description

Gasoline Engine, Engine Series XR Professional Series, Gross Torque 14.5 lb-ft, Horsepower 10 hp, Shaft Orientation Horizontal, Shaft Configuration Keyed 3/16 In., Tapped 3/8 In.-24, Shaft Diameter 3/4 in, Shaft Length 2 1/2 in, Start Type Recoil, Maximum Speed 3,750 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 305 cc, Fuel Tank Capacity 3.2 qt, Engine Cycle 4-Cycle, Overall Depth 11 in, Overall Depth Facing PTO 11 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
