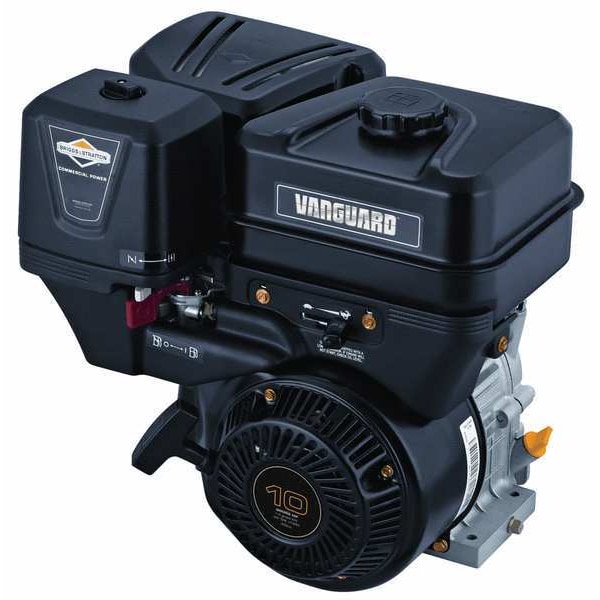

Gasoline Engine, 10 HP, Horizontal Shaft

  • Mfr # 19L232-0036-F1
  • Zoro # G5992427
product price:
$
607.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
10 hp
Gross Torque
12.7 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
1
Shaft Length (In.)
2 49/64 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
19L232-0036-F1
Zoro #
G5992427
UPC #
024847188738
Country of Origin
China
HP
10 hp
Gross Torque
12.7 lb-ft
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
3.6 qt
Ignition Type
Magnetron
Maintenance Frequency
50 Hour or as Needed
Recommended Use
Augers, Blowers, Log Splitters, Pumps, Tillers
Shaft Key (In.)
1/4 in
Start
Recoil
Engine RPM
3,600 RPM
Overall W Facing PTO (In.)
16.62 in
Cylinders
1
Series
Vanguard Horizontal
4 Cycle Engine
yes
PTO Shaft Key (In.)
0.25 in
Features
Dura-Bore Cast Iron Cylinder Sleeve
RPM
3,600 RPM
Bearings
Dual Ball
Shaft Configuration
1/4" Keyway, Tapped 3/8"-24
Item
Gasoline Engine
Application
Augers, Blowers, Log Splitters, Pumps, Tillers
Overall H Facing PTO (In.)
16.88 in
Starter Type
Recoil
Rotation
CCW
Low Oil Shut Down
Yes
Air Filter
Pleated Paper
Muffler
Yes
Air Cleaner Type
Dual Paper Foam
Start Type
Recoil
Overall W Facing PTO
16 5/8 in
PTO Shaft Key
1/4 in
Fuel Tank Capacity
3.6 qt
CARB Compliant
CARB Compliant
Engine Displacement
305 cc
Engine Cycle
4-Cycle
Horsepower
10 hp
Engine Series
Vanguard
Overall H Facing PTO
16 7/8 in
Engine Brand
Briggs and Stratton
Maximum Speed
3,600 RPM
Shaft Key
1/4 in
Number of Cylinders
1

Dimensions

Shaft Dia. (In.)
1
Shaft Length (In.)
2 49/64 in
PTO Shaft Height (In.)
4.17 in
Shaft Height (In.)
4.17 in
PTO Shaft Dia. (In.)
1.0 in
Overall Depth Facing PTO (In.)
19.6 in
Overall Height (In.)
13.6 in
PTO Shaft Length (In.)
2.906 in
Overall Depth (In.)
19.6 in
Overall Width (In.)
16.6 in
Overall Width
16 5/8 in
Overall Height
13 5/8 in
Shaft Diameter
1 in
PTO Shaft Diameter
1 in
Shaft Height
4 3/16 in
Overall Depth Facing PTO
19 5/8 in
Overall Depth
19 5/8 in
Shaft Length
2 3/4 in
PTO Shaft Length
2 7/8 in
PTO Shaft Height
4 3/16 in
Fits Chest Size
Dura-Bore Cast Iron Cylinder Sleeve

Description

Gasoline Engine, Engine Series Vanguard, Gross Torque 12.7 lb-ft, Horsepower 10 hp, Shaft Orientation Horizontal, Shaft Configuration 1/4 In. Keyway, Tapped 3/8 In.-24, Shaft Diameter 1 in, Shaft Length 2 3/4 in, Start Type Recoil, Maximum Speed 3,600 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 305 cc, Fuel Tank Capacity 3.6 qt, Engine Cycle 4-Cycle, Overall Depth 19 5/8 in, Overall Depth Facing PTO 19 5/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
