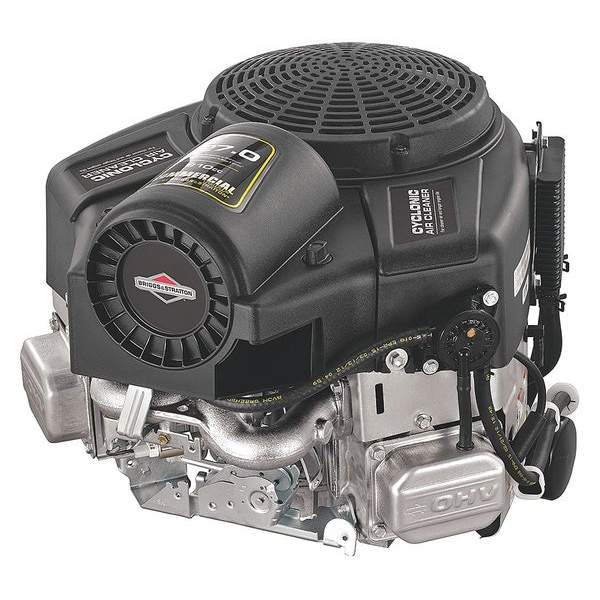

Briggs & Stratton Gasoline Engine, 27 HP, 1-1/8 in. Crank 49T877-0049-Z1 - main

Gasoline Engine, 27 HP, 1-1/8 in. Crank

  • Mfr # 49T877-0049-Z1

  • Zoro # G5914237

product price: $1,671.99
/ea
Item requires special delivery charges. A $215.00 per item surcharge will be applied.

Key Features

Type
4 cycle
HP
27 hp
Shaft Orientation
Vertical
Shaft Dia. (In.)
1-1/8
Shaft Length (In.)
4 19/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49T877-0049-Z1
Zoro #
G5914237
UPC #
472820175938
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
1-1/8
Shaft Length (In.)
4 19/64 in
Overall Height (In.)
15.4688 in
Overall Depth Facing PTO (In.)
20.0156 in
Overall Depth (In.)
19.0781 in
PTO Shaft Length (In.)
4.3125 in
PTO Shaft Dia. (In.)
1.125 in
Overall Width (In.)
18.125 in
Overall Depth Facing PTO
20 in
Shaft Length
4 5/16 in
Overall Width
18 1/8 in
Overall Depth
19 1/16 in
PTO Shaft Length
4 5/16 in
Shaft Diameter
1 1/8 in
PTO Shaft Diameter
1 1/8 in
Overall Height
15 1/2 in

Details

Type
4 cycle
HP
27 hp
Shaft Orientation
Vertical
Maintenance Frequency
Change Air Cleaner Cartridge Every 100 Hour or Seasonally, Change at 5 Hour, Then Once Every 50 Hour or Seasonally Whichever Comes First, Change Oil Filter Every 100 Hour or Seasonally
Series
Commercial V-Twin
Low Oil Shut Down
No
Air Cleaner Type
Cyclonic
Rotation
CCW
Muffler
No
Start
Electric
Application
Z Turn and Riding Mower
Recommended Use
Z Turn and Riding Mower
Features
Dura-Bore Cast Iron Cylinder Sleeve
Gear Box
No
Bearings
PTO
Ignition Type
Magnetron Electronic
RPM
3,600 RPM
Shaft Configuration
Keyway, Tapped 7/16"-20
Function
Repower
Shaft Key (In.)
1/4 in
Agency Compliance
Yes
Air Filter
Cartridge with (2) Debris Protection
Design
Overhead Valve
Starter Type
Heavy Duty Electric 12V
Overall H Facing PTO (In.)
19.0781 in
Cylinders
2
4 Cycle Engine
yes
Includes
Cyclonic Filter, Oil Pump, Starter
Overall W Facing PTO (In.)
18.125 in
PTO Shaft Key (In.)
0.25 in
Item
Gasoline Engine
Engine RPM
3,600 RPM
Shaft Key
1/4 in
Overall H Facing PTO
19 1/16 in
Engine Displacement
810 cc
Overall W Facing PTO
18 1/8 in
Maximum Speed
3,600 RPM
Engine Series
Commercial Turf Series
Number of Cylinders
2
Start Type
Electric
CARB Compliant
CARB Compliant
Standards
Yes
Engine Cycle
4-Cycle
PTO Shaft Key
1/4 in
Horsepower
27 hp
Engine Brand
Briggs and Stratton

Description

Gasoline Engine, Engine Series Commercial Turf Series, Gross Torque Not Applicable, Horsepower 27 hp, Shaft Orientation Vertical, Shaft Configuration Keyway, Tapped 7/16 In.-20, Shaft Diameter 1 1/8 in, Shaft Length 4 5/16 in, Start Type Electric, Maximum Speed 3,600 RPM, Muffler No, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 810 cc, Engine Cycle 4-Cycle, Overall Depth 19 1/16 in, Overall Depth Facing PTO 20 in, Overall H Facing PTO 19 1/16 in
