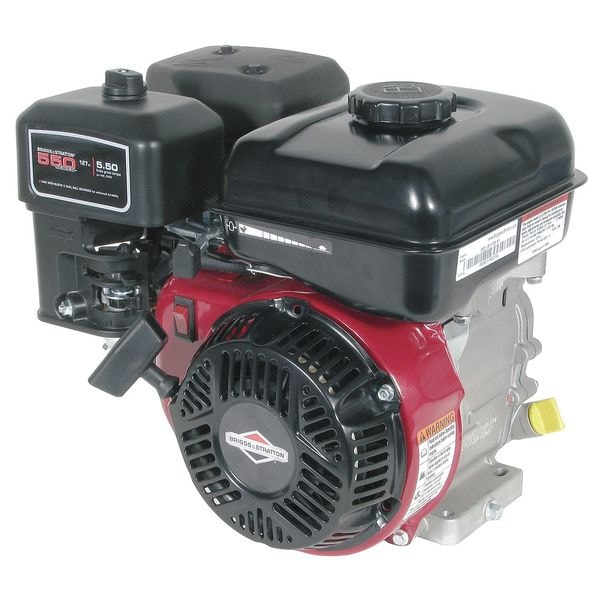

Shop BRIGGS & STRATTON

Gasoline Engine, 5.5 lb./ft., Gross Torque

  • Mfr # 83152-1049-F1BS

  • Zoro # G9178741

original price:  $874.99 , new price: $787.99 , 9 percent off
new price:  $787.99
/ea
Free Shipping & Returns

Key Features

Shaft Height (In.)
4.17 in
PTO Shaft Key (In.)
Y
RPM
3,600 RPM
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
2 qt
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
83152-1049-F1BS
Zoro #
G9178741
UPC #
024847867077
Country of Origin
China

Dimensions

Shaft Height (In.)
4.17 in
Overall Depth (In.)
11 in
Overall Height (In.)
12.6 in
Shaft Dia. (In.)
3/4
PTO Shaft Length (In.)
2.421 in
Overall Depth Facing PTO (In.)
6.89 in
PTO Shaft Dia. (In.)
0.75 in
Overall Width (In.)
13.53 in
Shaft Length (In.)
1 13/16 in
PTO Shaft Height (In.)
4.17 in
Overall Height
12 5/8 in
Overall Width
13 1/2 in
Overall Depth Facing PTO
6 7/8 in
Overall Depth
11 in
Shaft Diameter
3/4 in
Shaft Length
1 13/16 in
PTO Shaft Length
2 7/16 in
PTO Shaft Diameter
3/4 in
Shaft Height
4 3/16 in
PTO Shaft Height
4 3/16 in

Details

Item
Gasoline Engine
PTO Shaft Key (In.)
Y
RPM
3,600 RPM
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
2 qt
Function
Chore
Features
Cast Iron Cylinder Sleeve for Extended Life
Shaft Configuration
3/4" Dia, 6 to 1 Gear Reduction CCW Rotation, Keyway
Muffler
Yes
Gear Box
6 to 1
Cylinders
1
Overall W Facing PTO (In.)
7.32 in
Ignition Type
Magnetron Electronic
Shaft Key (In.)
Y
Engine RPM
3,300 RPM
Maintenance Frequency
50 hours
Air Cleaner Type
Paper Pleated
Air Filter
Pleated Paper
Starter Type
Recoil
4 Cycle Engine
yes
Series
XR Professional 550
Rotation
CCW
Bearings
Ball, PTO
Recommended Use
Compressors, Log Splitters, Pumps, Tampers, Tillers
Application
Pumps,Tampers,Log Splitters,Tillers,Compressors
Design
Overhead Valve
Gross Torque
5.5 lb-ft
Overall H Facing PTO (In.)
12.6 in
Fuel Tank Capacity
2 qt
Overall W Facing PTO
7 5/16 in
Engine Series
XR Professional Series
Start Type
Recoil
Number of Cylinders
1
Horsepower
3.5 hp
Maximum Speed
3,300 RPM
CARB Compliant
CARB Compliant
Engine Displacement
127 cc
Engine Brand
Briggs and Stratton
Engine Cycle
4-Cycle
Overall H Facing PTO
12 5/8 in

Description

Gasoline Engine, Engine Series XR Professional Series, Gross Torque 5.5 lb-ft, Horsepower 3.5 hp, Shaft Orientation Horizontal, Shaft Configuration 3/4 In. Dia, 6 to 1 Gear Reduction CCW Rotation, Keyway, Shaft Diameter 3/4 in, Shaft Length 1 13/16 in, Start Type Recoil, Maximum Speed 3,300 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 127 cc, Fuel Tank Capacity 2 qt, Engine Cycle 4-Cycle, Overall Depth 11 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
