Shop BRIGGS & STRATTON

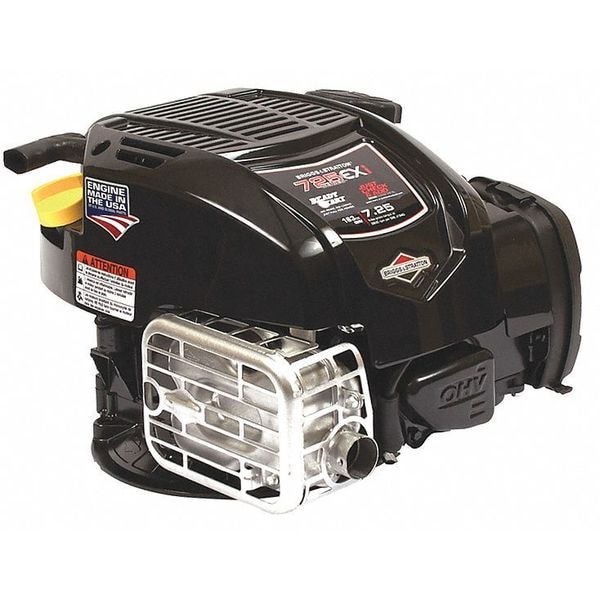

Gasoline Engine, 7.2 lb.-ft. Gross Torque

  • Mfr # 104M02-0197-F1

  • Zoro # G7717930

product price:
$
273.99
/ea
Free Shipping & Returns

Key Features

Type
4 cycle
Gross Torque
7.25 lb-ft
Shaft Orientation
Vertical
Shaft Dia. (In.)
7/8
Shaft Length (In.)
3 5/32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
104M02-0197-F1
Zoro #
G7717930
UPC #
024847940015
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
7/8
Shaft Length (In.)
3 5/32 in
PTO Shaft Dia. (In.)
0.87 in
Overall Width (In.)
12.1875 in
Overall Depth (In.)
13.3906 in
Shaft Height (In.)
3.1563 in
Overall Height (In.)
9.9688 in
PTO Shaft Length (In.)
3.3125 in
Shaft Length
3 3/16 in
PTO Shaft Length
3 5/16 in
Overall Width
12 3/16 in
Overall Depth
13 3/8 in
PTO Shaft Diameter
7/8 in
Shaft Height
3 3/16 in
Overall Height
10 in
Shaft Diameter
7/8 in

Details

Type
4 cycle
Gross Torque
7.25 lb-ft
Shaft Orientation
Vertical
Fuel Tank Capacity (Qt.)
1.5 qt
Agency Compliance
SAE J1940
Ignition Type
Electronic
Air Filter
Pleated Paper
Series
725exi
Features
Lightest Engine in its Class by 30% for Easier Maneuverability
Application
Lawn and Garden
Start
Recoil
Low Oil Shut Down
No
Rotation
CCW
Air Cleaner Type
Dual Clean
Cylinders
1
Bearings
Plain
Shaft Configuration
2WK, Keyway
Muffler
Yes
Design
Overhead Valve
Starter Type
Recoil
Includes
Gas Tank, Muffler, Rewind Starter
Engine RPM
3,200 RPM
Function
Repower
Shaft Key (In.)
3/16 in
Item
Gasoline Engine
Gear Box
No
4 Cycle Engine
yes
Maintenance Frequency
Change Air Filter at 25 Hour or Seasonally, Change Oil at 5 Hour, Then Once Every 25 Hour or Seasonally, Whichever Comes First
Recommended Use
Lawn and Garden
RPM
3,200 RPM
Maximum Speed
3,200 RPM
Engine Brand
Briggs and Stratton
Engine Series
725Exi Series
Engine Displacement
163 cc
CARB Compliant
CARB Compliant
Engine Cycle
4-Cycle
Start Type
Recoil
Shaft Key
3/16 in
Number of Cylinders
1
Standards
SAE J1940
Fuel Tank Capacity
1.5 qt

Description

Gasoline Engine, Engine Series 725Exi Series, Gross Torque 7.25 lb-ft, Horsepower Not Applicable, Shaft Orientation Vertical, Shaft Configuration 2WK, Keyway, Shaft Diameter 7/8 in, Shaft Length 3 3/16 in, Start Type Recoil, Maximum Speed 3,200 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 163 cc, Fuel Tank Capacity 1.5 qt, Engine Cycle 4-Cycle, Overall Depth 13 3/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
