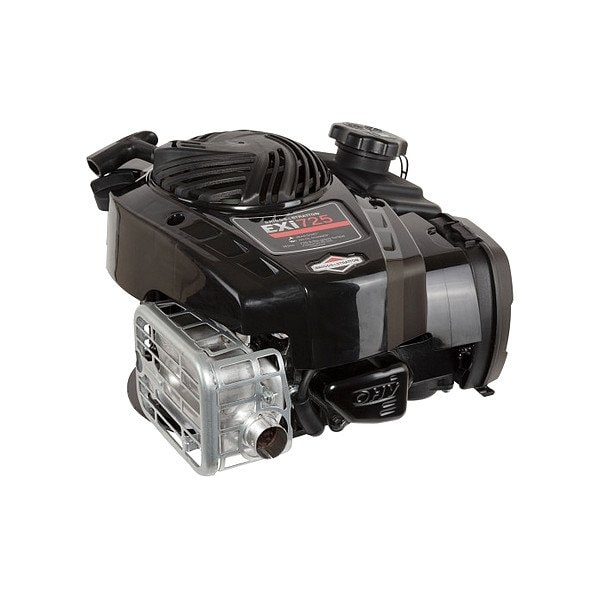

Small Engine, 4-Cycle, 163 cc
Mfr # 104M02-0196-F1
Zoro # G015946789
product price:Â $273.99
/ea
Free Shipping & Returns
Key Features
Gross Torque
7.25 lb-ft
Shaft Orientation
Vertical
Engine Brand
Briggs and Stratton
Overall Depth
13 3/8 in
Overall Height
252 13/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 104M02-0196-F1
- Zoro #
- G015946789
- UPC #
- 047282259375
- Country of Origin
- United States
Dimensions
- Overall Depth
- 13 3/8 in
- Overall Height
- 252 13/16 in
- Overall Width
- 10 3/16 in
- Shaft Diameter
- 25 mm
- Shaft Length
- 3 3/16 in
Details
- Gross Torque
- 7.25 lb-ft
- Shaft Orientation
- Vertical
- Engine Brand
- Briggs and Stratton
- Engine Series
- Exi
- Features
- Dual Sealing Air Cleaner, Readystart(R) Starting System
- Standards
- SAE J1940
- Design
- Vertical Shaft
- Item
- Small Engine
- Shaft Configuration
- Drilled and Tapped 3/8-24, Keyway 2 #605 WK 1/4-SQ
- Air Cleaner Type
- Dual Sealing
- Maximum Speed
- 3,000 RPM
- Muffler
- Yes
- Engine Displacement
- 163 cc
- Engine Cycle
- 4-Cycle
- Start Type
- Recoil
- CARB Compliant
- CARB Non-Compliant
Description
Small Engine, Engine Series Exi, Gross Torque 7.25 lb-ft, Horsepower Not Applicable, Shaft Orientation Vertical, Shaft Configuration Drilled and Tapped 3/8-24, Keyway 2 #605 WK 1/4-SQ, Shaft Diameter 25 mm, Shaft Length 3 3/16 in, Start Type Recoil, Maximum Speed 3,000 RPM, Muffler Yes, CARB Compliant CARB Non-Compliant, Engine Brand Briggs and Stratton, Engine Displacement 163 cc, Fuel Tank Capacity Not Applicable, Engine Cycle 4-Cycle, Net Torque Not Applicable, Overall Depth 13 3/8 in
