  9. Ceiling Bathroom Fan, 50 CFM, 120V AC, Duct Diameter 4 in, 1 Phase
This item is Discontinued.

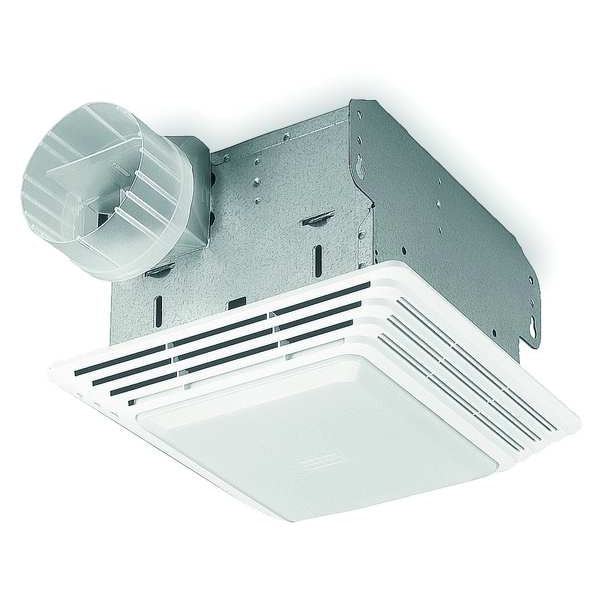

Broan-Nutone Ceiling Bathroom Fan, 50 CFM, 120V AC, Duct Diameter 4 in, 1 Phase 678

Ceiling Bathroom Fan, 50 CFM, 120V AC, Duct Diameter 4 in, 1 Phase (Discontinued)

  • Mfr # 678
  • Zoro # G2686047
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
678
Zoro #
G2686047
UPC #
026715002597
Country of Origin
United States

Dimensions

Duct Dia.
4 in
Housing Width
8 in
Height (In.)
5-3/4"
Width (In.)
8-1/4"
Grille Length
10 1/2 in
Grille Width
11 in
Housing Length
8 1/4 in
Housing Height
5 3/4 in
Overall Width
8 in
Width
42.4
Overall Height
5 3/4 in
Profile Width Family
Single-Wide
Profile Height Family
Medium
Duct Diameter
4 in
Overall Depth
8 1/4 in

Details

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
50 cfm
Includes
Mounting Brackets
Phase
1
Watts
42.4 W
Amps
1.6
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
2.5
Lighted
With Light
Heater
Without Heater
Motion Sensing
No
Profile
Low
Item
Bathroom Fan
Requires
100W Incandescent Lamp (100A-120V)
Grille Material
Polymeric
Night-Light
No
Discharge
Horizontal
Construction Material
Metal
Standards
HVI Certified, UL Listed
Hz
60 Hz
Humidity Sensing
No
Grille Color
White
Motor Type
Permanently Lubricated
Housing Finish
Galvanized
Blower Wheel Material
Polymeric
Exhaust Airflow @ 0.250 in SP
29 cfm
Wattage
42 W
Primary Light Wattage
100 W
Discharge Direction
Horizontal
Vent Design
Ducted
Maximum Noise Level
2.5 sones
Noise Level @ 0.100 in SP @ 5 ft
2.5 sones
Primary Light Type
A19
Includes Light Bulbs
No
Roomside Installation
No
Mounting Orientation
Horizontal
Maximum Coverage Area
45 sq ft
Frequency
60 Hz
Full Load Current
1.6 A
Includes Grill
Yes
Number of Primary Lights
1
Sensor Type
None
Duct Shape
Round
Exhaust Airflow @ 0.100 in SP
50 cfm
Primary Lighting Technology
Incandescent
Nameplate Voltage
120V AC

Description

Bathroom Fan, Discharge Direction Horizontal, Duct Diameter 4 in, Duct Shape Round, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Mounting Brackets, Mounting Location Ceiling, Exhaust Airflow @ 0.100 in SP 50 cfm, Maximum Noise Level 2.5 sones, Noise Level @ 0.100 in SP @ 5 ft 2.5 sones, Maximum Coverage Area 45 sq ft, Number of Speeds 1, Overall Depth 8 1/4 in, Overall Height 5 3/4 in, Overall Width 8 in, Lighted With Light

Documents & Resources

Restrictions

This item has been restricted from sale in the following states: NJ
