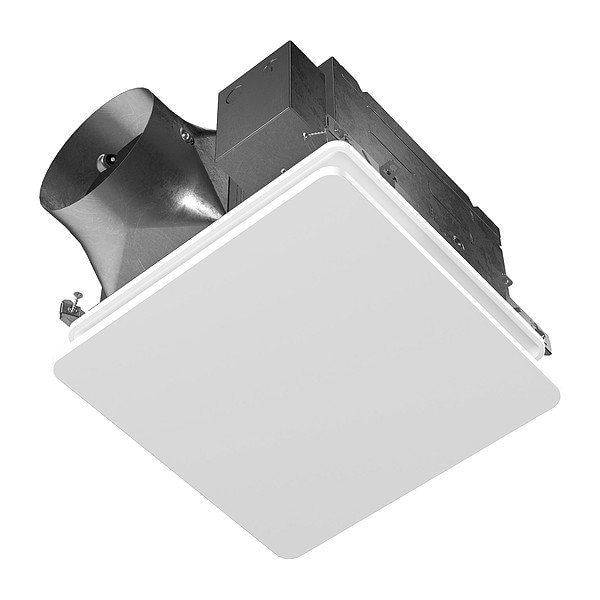

EVOLVE Premium Exhaust Fan w/ Continuous

Mfr # PTE1115RK
Zoro # G822653115

292.99

Free Shipping & Returns

Key Features

Includes Grill

Yes

Wattage

29.6 W

Includes

CleanCover(TM) Grille

Sensor Type

None

Overall Height

7 1/8 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PTE1115RK
Zoro #: G822653115
UPC #: 026715272228
Country of Origin: United States

Dimensions

Overall Height: 7 1/8 in
Profile Height Family: Low
Grille Length: 14 in
Overall Width: 11 3/8 in
Profile Width Family: Single-Wide
For Cut-Out Length: 12 in
For Cut-Out Width: 11 in
Grille Width: 13 1/8 in
Duct Diameter: 6 in
Overall Depth: 10 1/2 in

Details

Includes Grill: Yes
Wattage: 29.6 W
Includes: CleanCover(TM) Grille
Sensor Type: None
Standards: ASHRAE 62.2, Energy Star, LEED
Discharge Direction: Vertical
Item: EVOLVE Premium Exhaust Fan w/ Continuous Run, 110-130-150 Selectable CFM
Exhaust Airflow @ 0.000 in SP: 110 cfm, 150 cfm
Number of Speeds: 3
Exhaust Airflow @ 0.250 in SP: 150 cfm
Roomside Installation: No
Housing Finish: Galvanized
Duct Shape: Round
Noise Level @ 0.100 in SP @ 5 ft: 0.6 sones
Heater: Without Heater
Maximum Airflow: 150 cfm
Grille Material: ABS
Full Load Current: 0.5 A
Motor Type: ECM
Noise Level @ 0.250 in SP @ 5 ft: 1.4 sones
Phase: 1
Vent Design: Ducted
Maximum Noise Level: 0.6 sones
Housing Material: Steel
Exhaust Airflow @ 0.100 in SP: 150 cfm
Blower Wheel Curve: Backward
Nameplate Voltage: 120V AC
Frequency: 60 Hz
Grille Color: White
Maximum Coverage Area: 150 sq ft

Description

EVOLVE Premium Exhaust Fan w/ Continuous Run, 110-130-150 Selectable CFM, Discharge Direction Vertical, Duct Diameter 6 in, Duct Shape Round, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Heater Type Not Applicable, Heater Wattage Not Applicable, Includes CleanCover(TM) Grille, Mounting Location Ceiling, Maximum Airflow 150 cfm, Exhaust Airflow @ 0.100 in SP 150 cfm, Exhaust Airflow @ 0.000 in SP 110 cfm, 150 cfm, Maximum Noise Level 0.6 sones
