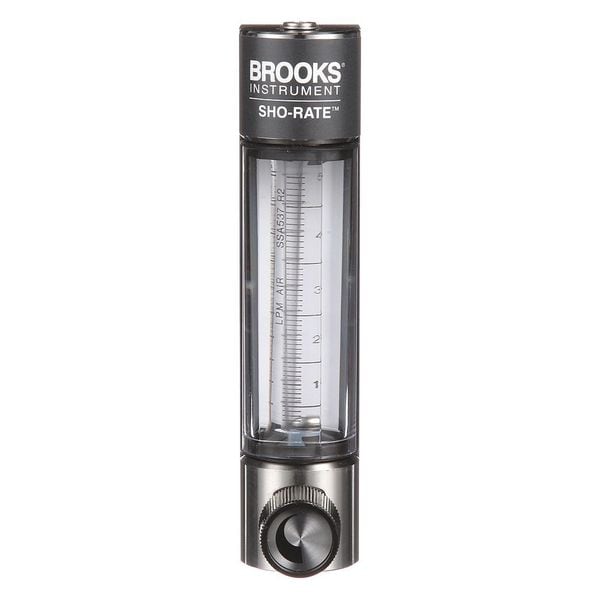

Flowmeter, Air, .2 to 5 LPM, Glass

Mfr # 1250AD6053ALSVV
Zoro # G4549474

$315.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Variable Area
Housing Material Aluminum
For Pipe Size 2 11/20 in
Connection Size 1/8 in
Flow Material Air

See all product information

Brand Brooks
MFR # 1250AD6053ALSVV
Zoro # G4549474
Country of Origin United States
Category Flowmeters

Dimensions

For Pipe Size	2 11/20 in
Connection Size	1/8 in
Height	5 1/2 in
Height (In.)	5-1/2
Connection Size (In.)	1/8 FNPT
Manufacturers Warranty Length	1 yr
Width (In.)	1-1/4"
Width	1 1/4 in
Manufacturer Warranty Length	1 yr
Overall Height	5.5 in
Overall Width	1.3 in
Overall Length	2.3 in

Details

Item	Mechanical Flowmeter
Type	Variable Area
Housing Material	Aluminum
Flow Material	Air
Connection Type	FNPT
Max. Pressure	200 psi
Max. Viscosity	79.8 SUS
Wetted Materials	316 Stainless Steel, Borosilicate Glass, Clear Polycarbonate, PTFE, Viton
Flow Range	.2 to 5 LPM
Fitting	Stainless Steel
Fluid Temp. Range	40 Degrees to 200 Degrees F
Max. Pressure (PSI)	200
Seal Material	Viton
O-Ring	Viton
Chamber Material	Glass
Accuracy (%)	+/-5
Flow Range (LPM)	.2 to 5
Flow Range @ LPM of Air	.2 to 5
Max. Temp. (F)	200
Output Type	Scaled Pulse
Display Type	Scale
Standards	International Calibration Certificate (ICC)
Product Type	Flow Meter
Mounting Orientation	Vertical
Includes Pressure Gauge	No
Media Temperature - Maximum	250 Degrees F
Flow Rate - Maximum	5 lpm
Media Temperature - Minimum	33 Degrees F
Operating Pressure - Maximum	200 psig
Compatible Flow Material	Air
Flowmeter Type	Variable Area
Includes Flow Rate Adjustment Knob	Yes
Wetted Material	Stainless Steel
Flow Rate - Minimum	0.3 lpm
Unit Of Measure	Liters
O-Ring Material	Viton
Viscosity - Maximum	79.8 SUS
Includes Totalizer	No
Accuracy	+/-5%

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 33 Degrees F, Viscosity - Maximum 79.8 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Stainless Steel
