Shop BROOKS

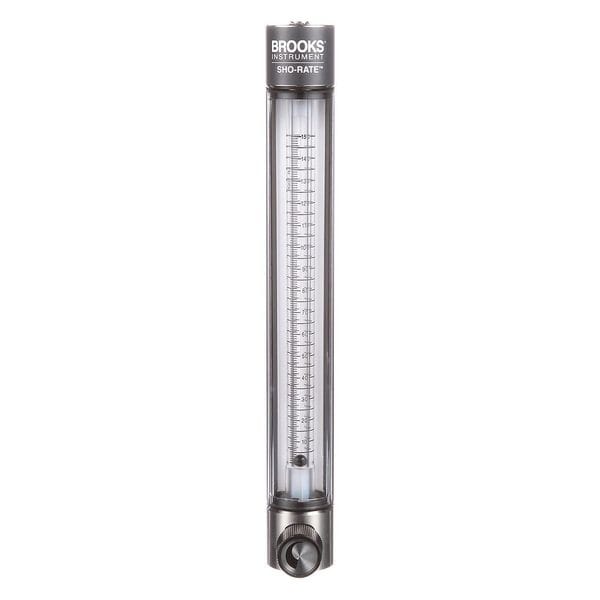

Flowmeter, Flow Range at CCM of Air 0-9180

  • Mfr # 1255AR1071MRSVV

  • Zoro # G3488581

product price:
$
328.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Variable Area
For Pipe Size
5 9/10 in
Flow Material
Air and Water
Connection Size
1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1255AR1071MRSVV
Zoro #
G3488581
UPC #
-
Country of Origin
United States
Item
Mechanical Flowmeter
Housing Material
Aluminum
Type
Variable Area
Flow Material
Air and Water
Connection Type
FNPT
Max. Pressure
50 psi
Max. Viscosity
16.4 cSt
Wetted Materials
316 Stainless Steel, Borosilicate Glass, Clear Polycarbonate, PTFE, Viton
Flow Range
0 to 9180 ccm
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 200 Degrees F
Standards
International Calibration Certificate (ICC)
Max. Pressure (PSI)
200
O-Ring
Viton
Flow Range @ CCM of Water
0 to 215
Seal Material
Viton
Insert
Stainless Steel
Flow Range @ CCM
0 to 9180 Air / 0 to 215 Water
Chamber Material
Glass
Accuracy (%)
+/-3
Flow Range @ CCM of Air
0 to 9180
Max. Temp. (F)
200
Display Type
Scale
Output Type
Scaled Pulse
Product Type
Flow Meter
Includes Flow Rate Adjustment Knob
Yes
Media Temperature - Maximum
250 Degrees F
Media Temperature - Minimum
33 Degrees F
Wetted Material
Stainless Steel
Includes Pressure Gauge
No
Unit Of Measure
Liters
Flow Rate - Minimum
0 cc/min
Accuracy
+/-3%
Mounting Orientation
Vertical
Compatible Flow Material
Air, Water
Includes Totalizer
No
O-Ring Material
Viton
Viscosity - Maximum
16.4 cSt
Flowmeter Type
Variable Area
Flow Rate - Maximum
215 cc/min
Operating Pressure - Maximum
200 psig

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 33 Degrees F, Viscosity - Maximum 16.4 cSt, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Stainless Steel
