  9. Flowmeter, Water, 1 to 10 GPH, Viton Seal
This item is Discontinued.

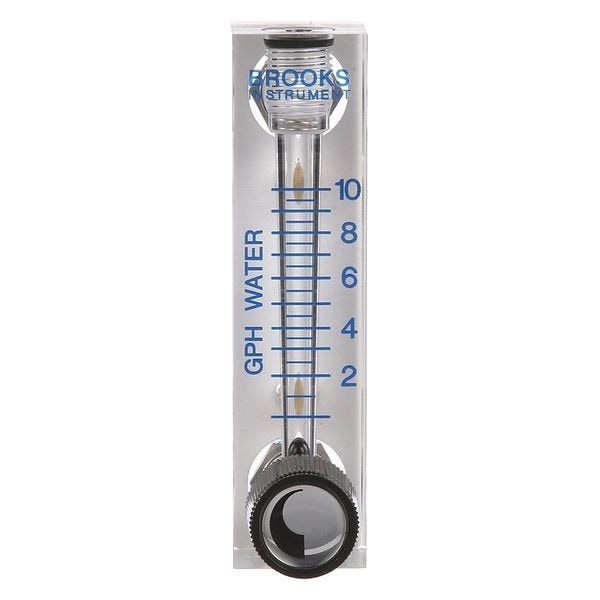

Brooks Flowmeter, Water, 1 to 10 GPH, Viton Seal 2510A2L20SVVT

Flowmeter, Water, 1 to 10 GPH, Viton Seal (Discontinued)

  • Mfr # 2510A2L20SVVT
  • Zoro # G4595367
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2510A2L20SVVT
Zoro #
G4595367
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Height
4 in
Width
1 in
Manufacturers Warranty Length
1 yr
Depth
1 1/8 in
Center-Center Fitting Size
3 in
Height (In.)
4
Width (In.)
1"
Center-Center Insert Size
1 5/8 in
Connection Size (In.)
1/8 FNPT
Overall Length
1.1 in
Manufacturer Warranty Length
1 yr
Overall Height
4 in
Overall Width
1 in

Details

Item
Mechanical Flowmeter
Housing Material
Acrylic
Type
Variable Area
Flow Material
Water
Connection Type
FNPT
Max. Pressure
100 psi
Wetted Materials
Clear Acrylic, Stainless Steel, Viton
Flow Range
1 to 10 gph
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 150 Degrees F
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Flow Range @ GPH of Water
1 to 10
Insert
10-32 Threaded Brass
Max. Temp. (F)
150
Flow Range @ GPH
1 to 10
Seal Material
Viton
O-Ring
Viton
Includes
Valves
Accuracy (%)
+/-5
Max. Pressure (PSI)
100
Standards
International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Output Type
Scaled Pulse
Product Type
Machined Flow Meter
Accuracy
5%
O-Ring Material
Viton
Flowmeter Type
Variable Area
Flow Rate - Maximum
10 gph
Wetted Material
Acrylic, Stainless Steel, Viton
Unit Of Measure
Liters
Media Temperature - Maximum
150 Degrees F
Mounting Orientation
Vertical
Flow Rate - Minimum
1 gph
Media Temperature - Minimum
40 Degrees F
Compatible Flow Material
Water
Operating Pressure - Maximum
100 psig

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 5 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Housing Material Acrylic, O-Ring Material Viton, Seal Material Viton, Wetted Material Acrylic, Stainless Steel, Viton, Standards International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
