  9. Meter, Water, 0.2-2.5gpm
This item is Discontinued.

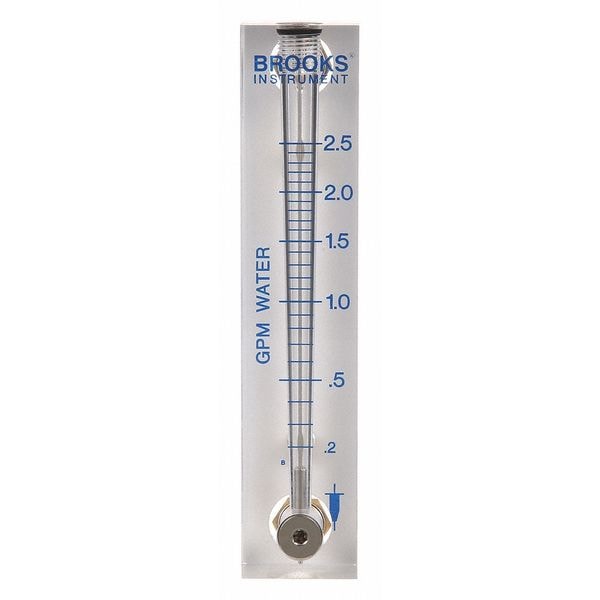

Brooks Meter, Water, 0.2-2.5gpm 2520Z-001021

Meter, Water, 0.2-2.5gpm (Discontinued)

  • Mfr # 2520Z-001021
  • Zoro # G1808712
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2520Z-001021
Zoro #
G1808712
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/8 to 1 in
Connection Size
1/8 in
Depth
1 1/8 in
Center-Center Insert Size
3 1/2 in
Width
1 3/8 in
Connection Size (In.)
1/8 FNPT
Height (In.)
6-1/2
Center-Center Fitting Size
5 1/2
Width (In.)
1-3/8"
Height
6 1/2 in
Overall Height
6.5 in
Overall Width
1.4 in

Details

Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Acrylic
Flow Material
Water
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Black Acrylic, Clear Acrylic, Stainless Steel
Flow Range
0.2 to 2.5 gpm
Fluid Temp. Range
40 Degrees to 150 Degrees F
Fitting
Brass
O-Ring
Nitrile
Flow Range @ GPM of Water
0.2 to 2.5
Max. Pressure (PSI)
100
Flow Range (GPM)
0.2 to 2.5
Accuracy (%)
+/-3
Insert
10-32 Threaded Brass
Max. Temp. (F)
150
Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Output Type
Scaled Pulse
Product Type
Flow Meter
Unit Of Measure
Liters
Wetted Material
Acrylic, Stainless Steel
Media Temperature - Maximum
150 Degrees F
Flow Rate - Minimum
0.2 gpm
Accuracy
+/-3%
Media Temperature - Minimum
40 Degrees F
O-Ring Material
Buna-N
Compatible Flow Material
Water
Flow Rate - Maximum
2.5 gpm
Operating Pressure - Maximum
50 psi
Flowmeter Type
Variable Area
Mounting Orientation
Vertical

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Housing Material Acrylic, O-Ring Material Buna-N, Seal Material -, Shaft Material -, Wetted Material Acrylic, Stainless Steel, Unit Of Measure Liters, Flow Rate - Maximum 2.5 gpm, Flow Rate - Minimum 0.2 gpm

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
