Shop All Flange Bearings
Browning

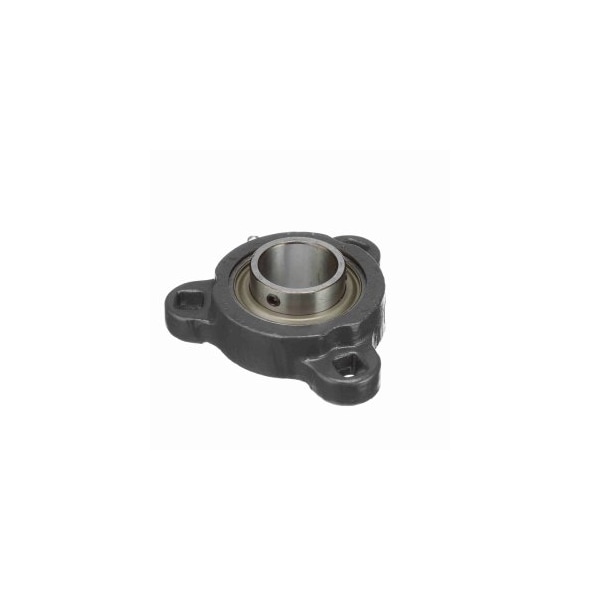

VF3S 100-M Light Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/4 in Bore

product price: $182.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Dia. 1-1/4 in
  • Bearing Insert Material Bearing Steel
  • Bolt Hole Center-to-Center 3-9/16 in
  • Bolt Size 0.42 in
  • Overall Height 1.266 in
See all product information

Product Information

Dimensions

Bore Dia. 1-1/4 in
Bolt Size 0.42 in
Overall Height 1.266 in
Overall Width 4.44 in
Overall Length 4-7/16 in

Details

Bearing Insert Material Bearing Steel
Bolt Hole Center-to-Center 3-9/16 in
Item Ball Bearing
Temp. Range Up to 200°F
Dynamic Load Capacity 5782 lb
Max. RPM 3000 RPM
Housing Material Ductile Iron
Lubrication Lithium Complex NLGI 2 Grease
Static Load Capacity 3493 lb
Finish Uncoated

Description

VF3S 100-M Light Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 3-9/16 in Dia Bolt Circle, 3-Bolt Flange Mount, 4-7/16 in OAL/Dia
