  11. Locking Connector, L14-30R, 30 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

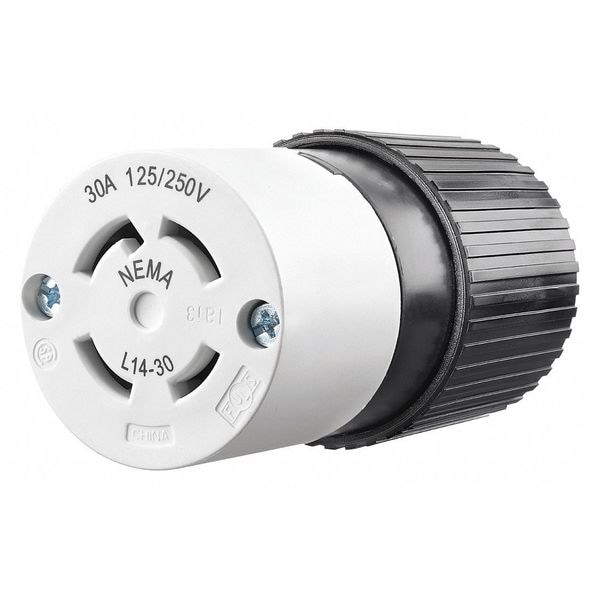

Bryant Locking Connector, L14-30R, 30 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White 71430NC - main

Locking Connector, L14-30R, 30 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 71430NC

  • Zoro # G4439821

product price: $67.67
/ea

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71430NC
Zoro #
G4439821
UPC #
781786695399
Country of Origin
China

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.465 in
Cord Size
0.465 in to 1.150 in
Overall Length
2.13 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Wire Size
#18 AWG to #8 AWG
Width
2.13 in
Length
2.13 in
Height
3.90 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
For Environment
Dry
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Power Indicating Light
No
For Location
Indoor
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Features
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Style
Internal Cord Clamp
Conductor Range
#12 AWG to #8 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
Heavy Duty Industrial
Amperage Rating
30 A
Antimicrobial
No
Power Indicator
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L14-30R, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
