  6. Locking Connector, Non-NEMA, 50 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black

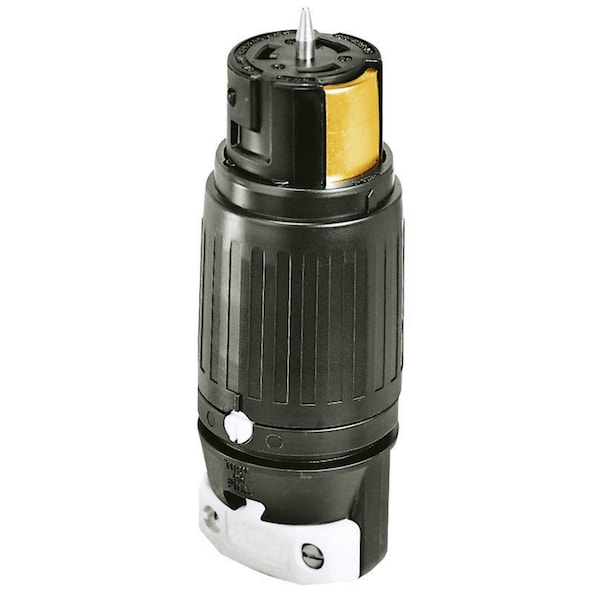

Bryant Locking Connector, Non-NEMA, 50 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black CS8164 - main

Locking Connector, Non-NEMA, 50 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # CS8164

  • Zoro # G504395210

product price:  $163.80
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8164
Zoro #
G504395210
UPC #
781786831100
Country of Origin
Puerto Rico

Dimensions

Height
2.56 in
Width
2.56 in
Length
6.50 in
Wire Size
#18 AWG to #8 AWG
For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.83 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified to CSA C22.2 No.42, File 31943, File E17740, UL Listed to ANSI/UL 498
Resistance Properties
Heat Resistant, Impact Resistant
Application
Heavy Duty Industrial
Material
Composite
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Extra Heavy Duty
Conductor Range
#6 AWG
Material - Mounting Hardware
Cord Mounted
Features
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands; Thermoplastic polyester interior provides heat resistance and impact strength; Oversized contacts minimize operating temperature
Amperage Rating
50 A

Description

Locking Devices, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
