  6. Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

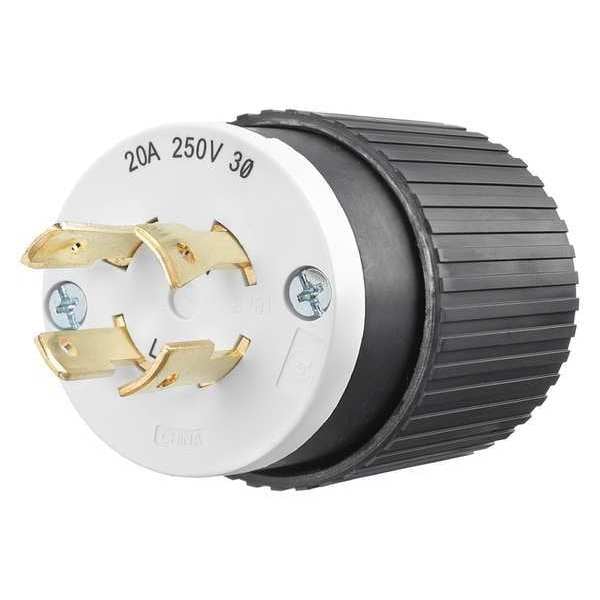

Bryant Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White 71520NP - main

Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 71520NP

  • Zoro # G4439596

product price:  $28.13
/ea

Key Features

NEMA Plug Configuration
L15-20P
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71520NP
Zoro #
G4439596
UPC #
781786695924
Country of Origin
China

Dimensions

Cord Size
0.465 in to 1.150 in
For Maximum Cable Diameter
1.15 in
Body Length
2.13 in
For Minimum Cable Diameter
0.465 in
Outside Diameter
2.13 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Face Diameter
1.89 in
Length
2.13in
Wire Size
#18 AWG to #8 AWG
Height
2.86 in
Width
2.13 in

Details

Item
Locking Plug
NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
IP Rating
IP20
Material
Nylon
Application
Extra Heavy Duty Industrial
Polarized
Yes
For Environment
Dry
Housing Material
Nylon
Horsepower Rating
3 hp
For Location
Indoor
Market
Industrial
Features
Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Style
Internal Cord Clamp
Material - Mounting Hardware
Cord Mounted
Amperage Rating
20 A
Antimicrobial
No
Amps
20

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L15-20P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.89 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.465 in, Grade Industrial, Grounding Grounded
