  11. Locking Plug, L18-20P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

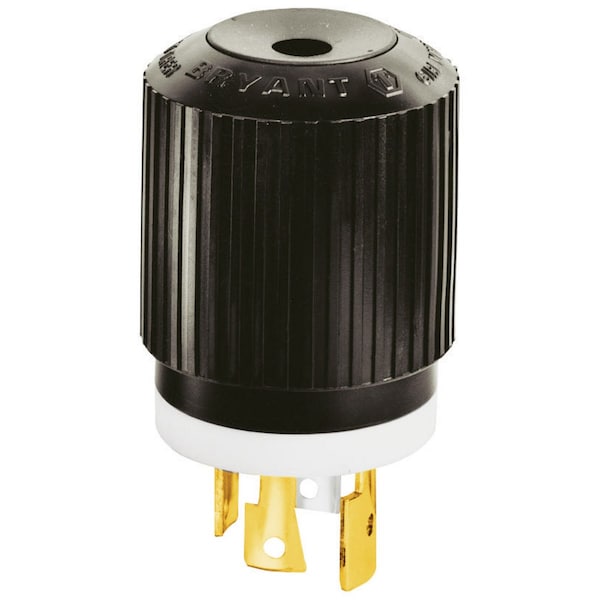

Bryant Locking Plug, L18-20P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White 71830NP - main

Locking Plug, L18-20P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # 71830NP

  • Zoro # G004392016

product price: $56.68
/ea

Key Features

Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71830NP
Zoro #
G004392016
UPC #
781786698529
Country of Origin
Puerto Rico

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.465 in
Wire Size
#18 AWG to #8 AWG
Length
2.13in
Width
2.13 in
Height
2.86 in

Details

Item
Locking Plug
NEMA Plug Configuration
L18-20P
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI/UL 498 File E17740, CSA Certified C22.2 No. 42, NSF/ANSI/3-A 14159-1
Material
Composite
Application
Extra Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Wattage
6240
Cord Type
All Listed Portables
Amperage Rating
30 A
Style
Internal Cord Clamp
Features
Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention

Description

Locking Devices, Industrial, Male Plug, 30A 3- Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, Black and White
