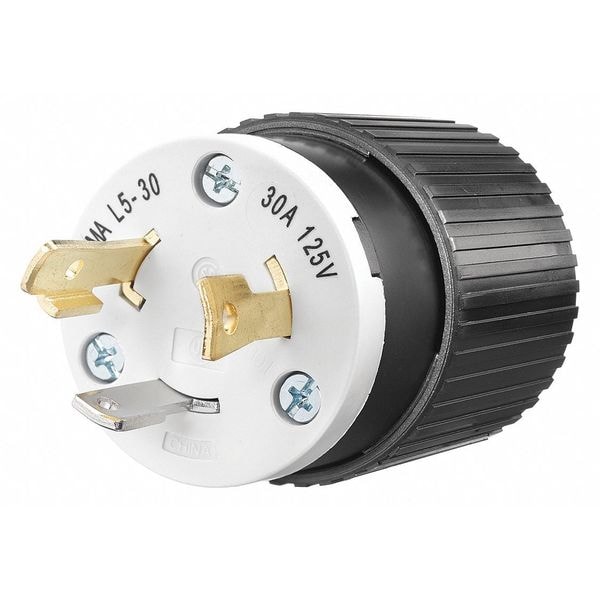

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White
Mfr # 70530NP
Zoro # G4439681
product price: $25.30
/eaKey Features
NEMA Plug Configuration
L5-30P
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
70530NP
Zoro #
G4439681
UPC #
781786688803
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.655 in
Maximum Wire Size
8 AWG
Face Diameter
1.89 in
Body Length
2.13 in
Minimum Wire Size
18 AWG
Outside Diameter
2.13 in
Length
2.13in
Wire Size
#18 AWG to #8 AWG
Height
2.86 in
Width
2.13 in
Description
Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration L5-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.89 in, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Grounding Grounded
