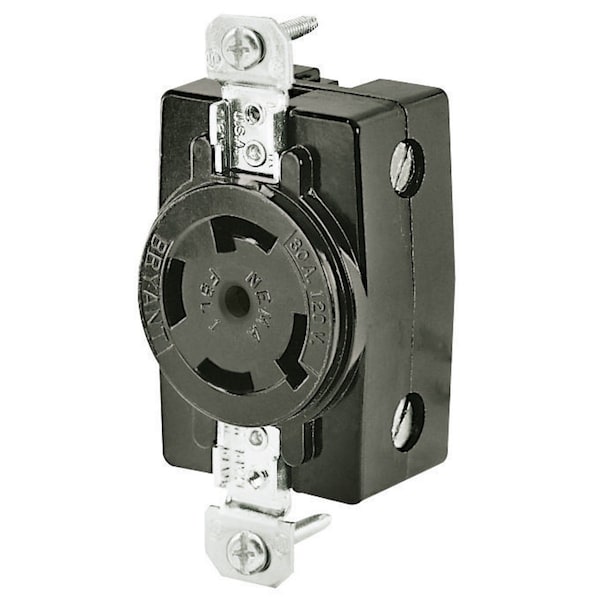

Locking Receptacle, FSL4-R, 30 A, 120/208V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

Mfr # FSL4FR
Zoro # G204392021

70.66

Key Features

NEMA Receptacle Configuration

FSL-4R

Current Rating

30 A

Voltage Rating

120/208V AC

Phase

Three

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: FSL4FR
Zoro #: G204392021
UPC #: 781786638310
Country of Origin: Puerto Rico

Dimensions

Wire Size: #14 AWG to #8 AWG
Height: 1.14 in
Length: 3.28 in
Width: 1.71 in

Details

Item: Locking Receptacle
NEMA Receptacle Configuration: FSL-4R
Current Rating: 30 A
Voltage Rating: 120/208V AC
Phase: Three
Number of Poles: 3
Number of Wires: 4
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Black
Mount Type: Flush
Cover Type: No Cover
Flange Type: Non-Flanged
Standards: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Material: Composite
Mounting Type: Screw Mounting
Wiring Style: Single Receptacle
Features: Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention; Designed, tested and approved for use on 400 Hz (400 cycles per second) circuits
Application: Extra Heavy Duty Industrial Specification Grade
Amperage Rating: 30 A
Style: Single Receptacle
Material - Mounting Hardware: Screw Mounting

Description

Locking Devices, Industrial, Flush Receptacle, 30A 3-Phase Wye 120/208V AC 400Hz, 4-Pole 5-Wire Grounding, FSL4R, Screw Terminal, Black
