  11. Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

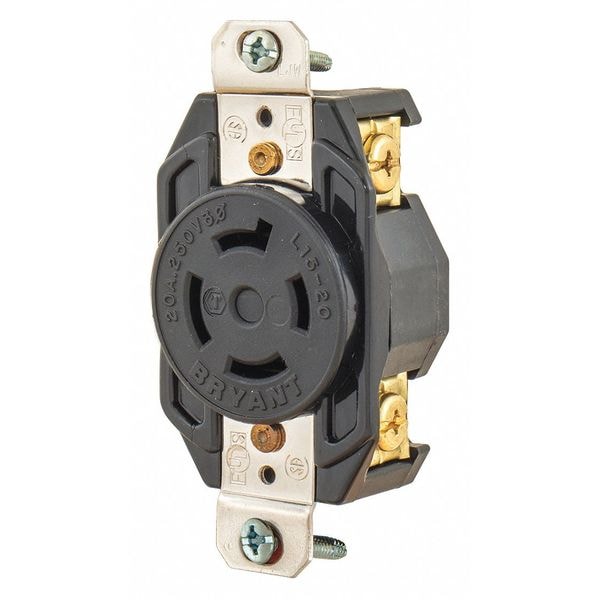

Bryant Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals 71520FR - main

Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # 71520FR

  • Zoro # G4439377

product price: $35.17
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71520FR
Zoro #
G4439377
UPC #
781786695832
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #8 AWG
Height
1.14 in
Length
3.28 in
Width
1.70 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Standards
UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Material
Nylon
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
Includes Mounting Hardware
Yes
Housing Material
Nylon
Market
Industrial
For Environment
Dry
Horsepower Rating
3 hp
For Location
Indoor
Includes
Mounting Hardware
Polarized
Yes
Contact Material
Copper Alloy
Amperage Rating
20 A
Application
Extra Heavy Duty Industrial Specification Grade
Features
Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Material - Mounting Hardware
Screw Mounting
Style
Single Receptacle
Amps
20

Description

Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L15-20R, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
