  11. Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

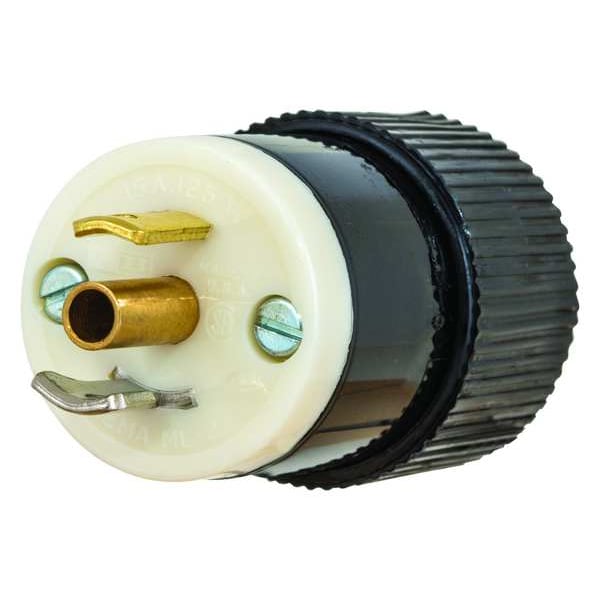

Bryant Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 7594NP - main

Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 7594NP

  • Zoro # G4439246

product price: $16.94
/ea

Key Features

NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7594NP
Zoro #
G4439246
UPC #
781786671355
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.281 in
Cord Size
0.281 in to 0.625 in
Face Diameter
1.12 in
Outside Diameter
1.25 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Body Length
1.25 in
Wire Size
#18 AWG to #12 AWG
Length
1.25in
Width
1.25 in
Height
1.60 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Shatter and Crack Resistant
Body Material
Nylon
Flange Material
Nylon
For Use With
Midget Locking Receptacle or Connector
Application
Extra Heavy Duty Industrial
Material
Composite
Market
Industrial
Polarized
Yes
For Location
Indoor
For Environment
Dry
Housing Material
Composite
Midget Locking
Yes
Features
Smaller body size for use in tighter fit applications where larger products can't; Abuse resistant nylon housing
Amperage Rating
15 A
Material - Mounting Hardware
Cord Mounted
NEMA Configuration
ML2-15
Amps
15 A

Description

Midget Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration ML2-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.12 in, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.281 in, Grounding Grounded, IP Rating IP20
