  11. Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

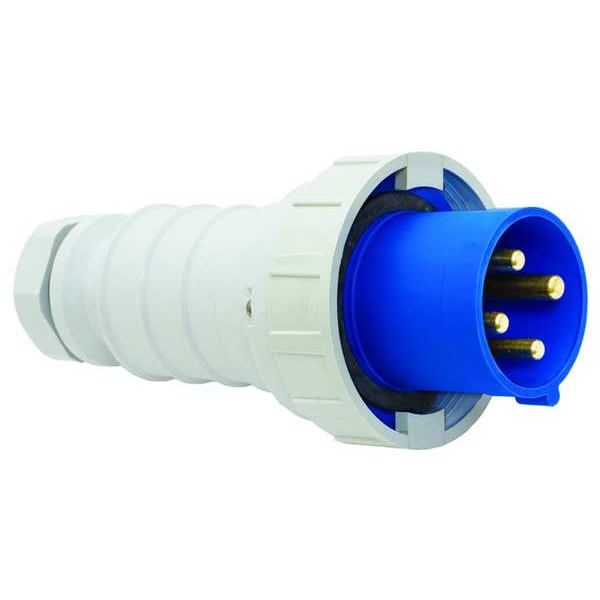

Bryant Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated BRY4100P9W - main

Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

  • Mfr # BRY4100P9W

  • Zoro # G4439158

product price: $444.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY4100P9W
Zoro #
G4439158
UPC #
781786250840
Country of Origin
Germany

Dimensions

Minimum Wire Size
3 AWG
For Minimum Cable Diameter
0.90 in
Maximum Wire Size
1/0 AWG
For Maximum Cable Diameter
1.68 in
Outside Diameter
4.92 in
Size
Standard
Wire Size
#4 AWG to #1 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
100 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
IEC 309-1, IEC 309-2, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Nylon
Grounding Style
IEC
Body Material - Pin and Sleeve
Nylon
Features
Watertight
Switch Rated
No
Power Indicating Light
No
NEMA Enclosure Rating
Not Rated
Housing Material
Non-Metallic
Horsepower Rating
5 hp
Reverse Service
No
Insulation Material
Nylon
Shrouded
Yes
Plug Type
Male Plug
Material
Composite
Insulation
Insulated Body
Environmental Conditions
IP67
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Ingress Protection
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Series
Watertight IP67
Mounting Type
Cord Mounted
Application
High Ampacity Connections
Dielectric Strength
Withstand 3000V AC

Description

Pin and Sleeve Plug, Current Rating 100 A, Horsepower Rating 5 hp, Housing Color Blue, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.68 in, For Minimum Cable Diameter 0.9 in, Grounding Grounded, Grounding Style IEC, Housing Material Composite, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG, NEMA Enclosure Rating Not Rated
