  11. Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Red, NEMA 4X

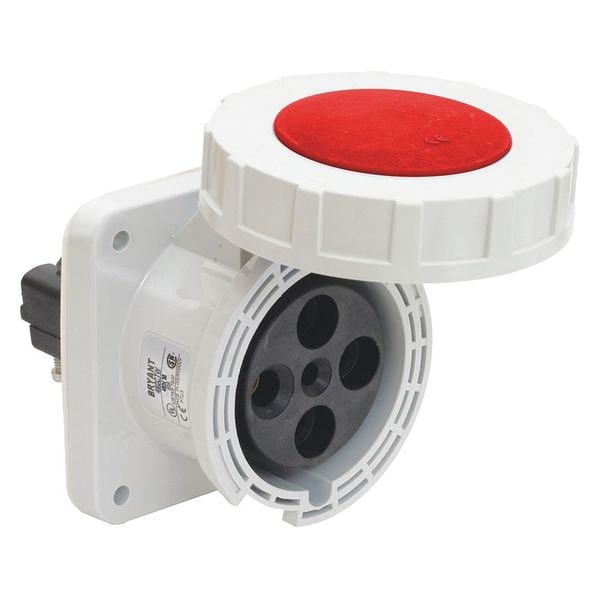

Bryant Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Red, NEMA 4X BRY460R7W - main

Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 3 Pole, Style 2 Grounding, Red, NEMA 4X

  • Mfr # BRY460R7W

  • Zoro # G2118048

product price: $307.50
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY460R7W
Zoro #
G2118048
UPC #
781786251502
Country of Origin
Germany

Dimensions

Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Wire Size
#6 AWG to #4 AWG
Size
Standard

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & SleeV ACe Configurations, CE
Resistance Properties
Corrosion Resistant, Watertight
Switch Rated
No
Features
Neoprene Glands
HP
10 hp
Power Indication
No
Grounding Style
Style 2
Body Material - Pin and Sleeve
Nylon
Body Material
Nylon
Power Indicating Light
No
Market
Industrial
Horsepower Rating
10 hp
Connection Orientation
Straight
Number of Gangs
1
Housing Material
Composite
Flange Type
Flanged
Reverse Service
No
Shrouded
Yes
Material
PBT
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Series
Watertight IP67
Environmental Conditions
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & Sleeve Configurations, CE
Mounting Type
Screw Mount
Application
High Ampacity Connections
Ingress Protection
IP67
Insulation
Insulated Body
Dielectric Strength
Withstand 3000V AC

Description

Pin and Sleeve Receptacle, Current Rating 60 A, Flange Type Flanged, Grounding Style Style 2, IP Rating IP67, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 10 hp, Housing Color Red, Housing Material Composite, Market Industrial, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Power Indicating Light No
