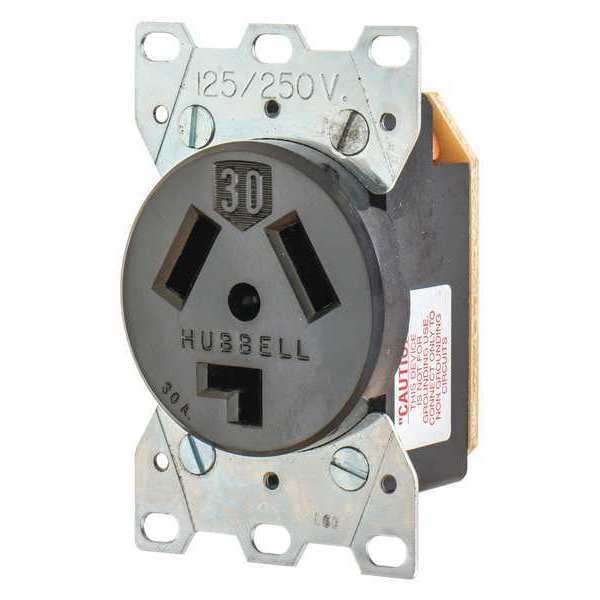

Straight Blade Receptacle, 10-30R, 30 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

Mfr # 9303
Zoro # G4438616

22.95

Key Features

Receptacle Type

Single

NEMA Receptacle Configuration

10-30R

Voltage Rating

125/250V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 9303
Zoro #: G4438616
UPC #: 781786632233
Country of Origin: United States

Dimensions

Face Plate Height: 3.7 in
Overall Depth: 2.3 in
Face Plate Width: 2.3 in
Mount Hole Center-to-Center Height: 3.3 in

Details

Item: Straight Blade Receptacle
Receptacle Type: Single
NEMA Receptacle Configuration: 10-30R
Current Rating: 30 A
Voltage Rating: 125/250V AC
Phase: Single
Number of Poles: 3
Number of Wires: 3
Wire Connection Type: Screw Terminals
Wiring Method: Side
Grounding: Non-Grounded
Housing Color: Black
Mount Type: Flush
IP Rating: IP20
Standards: CSA Certified, UL Listed
Flange Type: Non-Flanged
Wiring Method - Plugs and Receptacles: Side
HP: 2 hp
Power Indicator: No
Tamper Resistant: No
Mounting Type: Flush
NEMA Receptacle Configuration - Plugs and Receptacles: 10-30R
Sub-Category: Single Receptacles
Outlet Type: Single
Outlet Type - Plugs and Receptacles: Single
Weather Resistant: No
Surge Suppression: No
Mounting Type - Plugs and Receptacles: Flush
Corrosion Resistant: No
Weather Resistant - Plugs and Receptacles: No
Voltage: 125/250VAC
Material: Reinforced Thermoplastic Polymer
Application Environment: Industrial
Number of Gangs: 1
Cover Type: No Cover
GFCI: No
Grade: General Use
AFCI: No
Connection Orientation: Straight
Market: Industrial
Polarized: Yes
Surge Protection: No
Horsepower Rating: 2 hp
Housing Material: Thermoplastic
Style: Smooth Face
Nema Rating: 10-30R
Number of Outlets: 2
Number of Wall Plates Included: 0

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 10-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, UL Listed, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Method Side, AFCI No, Horsepower Rating 2 hp
