  11. Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

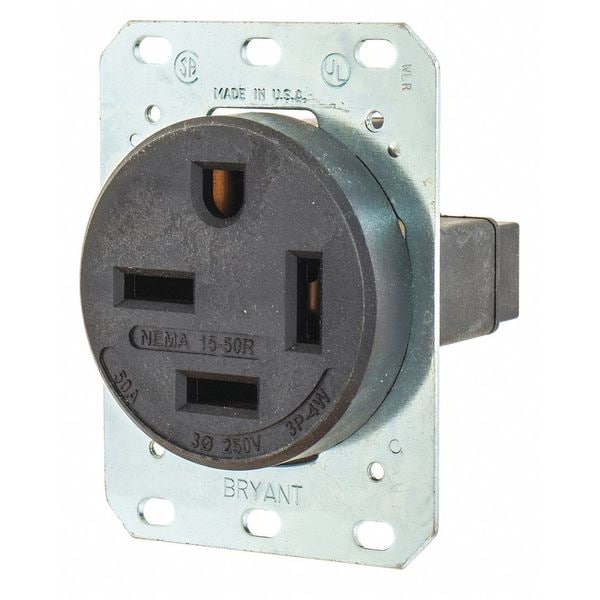

Bryant Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded 8450FR - main

Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # 8450FR

  • Zoro # G4438415

product price: $52.79
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
15-50R
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8450FR
Zoro #
G4438415
UPC #
781786674103
Country of Origin
United States

Dimensions

Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Wire Size
#10 AWG to #6 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-50R
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Heat Resistant, Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
15-50R
Wiring Method - Plugs and Receptacles
Back
Corrosion Resistant
No
Outlet Type
Single
Power Indicator
No
HP
7 1/2 hp
Surge Suppression
No
Material
Thermoplastic Polymer
Weather Resistant - Plugs and Receptacles
No
Voltage
250VAC
Weather Resistant
No
Application Environment
Industrial
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Tamper Resistant
No
For Location
Indoor
Includes Mounting Hardware
Yes
Surge Protection
No
AFCI
No
Horsepower Rating
7 1/2 hp
Housing Material
Composite
Polarized
Yes
GFCI
No
Market
Industrial
Includes
Mounting Hardware
Cover Type
No Cover
Grade
General Use
Connection Orientation
Straight
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
15-50R
Material - Mounting Hardware
Screw Mounting
Wattage
12500
Application
Industrial Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 15-50R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Resistance Properties Heat Resistant, Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
