  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

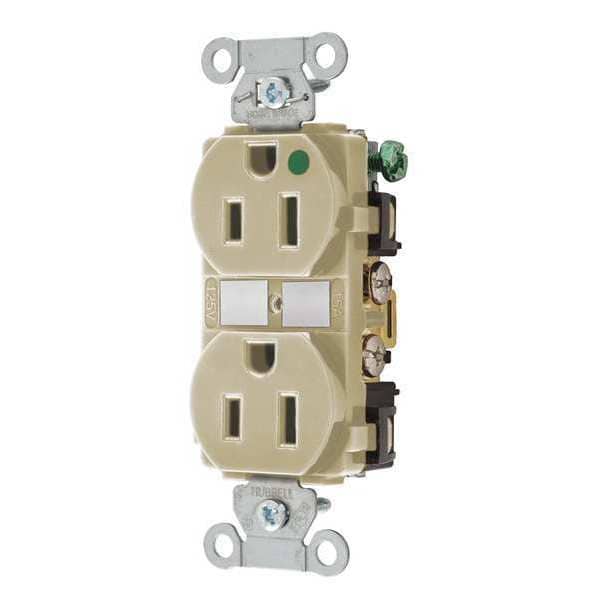

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8200HBI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8200HBI

  • Zoro # G4845508

product price: $13.47
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200HBI
Zoro #
G4845508
UPC #
781786147102
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Width
1.6 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Corrosion Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
No
Number of Gangs
1
Special Features
Corrosion resistant
Sub-Category
Duplex Receptacles
Voltage
125VAC
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1/2 hp
Mounting Type
Flush
Weather Resistant
No
Application Environment
Hospital Grade
Weather Resistant - Plugs and Receptacles
No
Contact Material
Brass
Horsepower Rating
1/2 hp
Grade
Hospital Grade Fed. Spec.
Surge Protection
No
Cover Type
No Cover
AFCI
No
Includes Mounting Hardware
Yes
Polarized
Yes
UL 94 Flammability Rating
V-2
GFCI
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
