  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

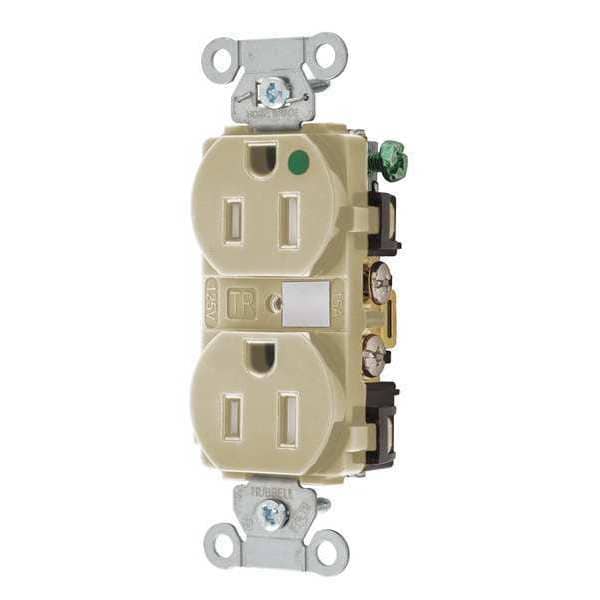

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8200HBITR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8200HBITR

  • Zoro # G4845499

product price: $16.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8200HBITR
Zoro #
G4845499
UPC #
781786147201
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Overall Depth
1.2 in
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
NEMA Configuration
5-15
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
HP
1/2 hp
Outlet Type
Duplex
Mounting Type - Plugs and Receptacles
Flush
Special Features
Corrosion resistant
Weather Resistant
No
Voltage
125VAC
Surge Suppression
No
Material
Nylon
Corrosion Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Hospital Grade
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Grade
Hospital Grade Fed. Spec.
Wire Connection Types
Screw Terminals
Key Resistance Properties
Tamper Resistant
Surge Protection
No
Includes
Mounting Hardware
Connection Orientation
Straight
Housing Material
Nylon
Horsepower Rating
1/2 hp
Additional Electrical Protection
Standard Protection
Cover Type
No Cover
Polarized
Yes
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Number of Poles & Wires
2 Pole / 3 Wire
GFCI
No
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
AFCI
No

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
