  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

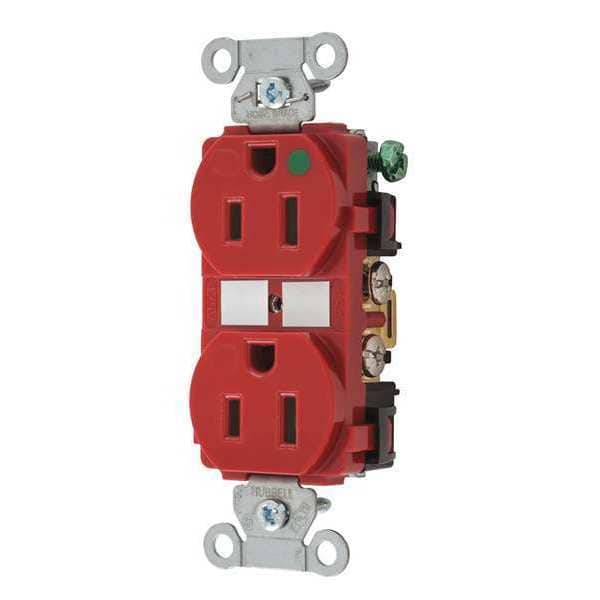

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8200HBRED - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8200HBRED

  • Zoro # G4845480

product price: $13.47
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8200HBRED
Zoro #
G4845480
UPC #
00781786147119
Country of Origin
United States

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Corrosion Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Hospital Grade
Tamper Resistant
No
NEMA Configuration
5-15
Material
Nylon
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Special Features
Corrosion resistant
Voltage
125VAC
Sub-Category
Duplex Receptacles
Number of Gangs
1
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Surge Suppression
No
Outlet Type
Duplex
Contact Material
Brass
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Nylon
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
AFCI
No
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Cover Type
No Cover
Surge Protection
No
Horsepower Rating
1/2 hp
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Grade
Hospital Grade Fed. Spec.

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
