  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

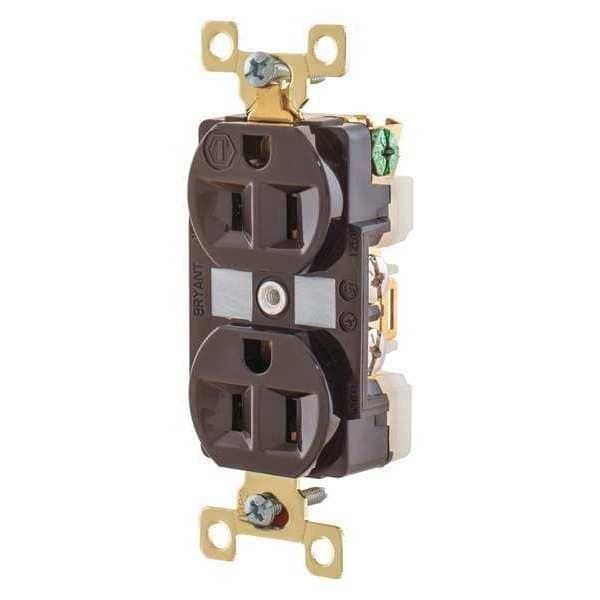

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BRY5262 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5262

  • Zoro # G4571290

product price: $8.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY5262
Zoro #
G4571290
UPC #
781786005013
Country of Origin
China

Dimensions

Width
1.54 in
Height
1.16 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.5 in
Maximum Wire Size
12 AWG
Overall Depth
1.2 in
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Flange Type
Non-Flanged
Corrosion Resistant
No
Surge Suppression
No
Number of Gangs
1
Outlet Type
Duplex
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Application Environment
Harsh and Heavy Use Industrial
Material
Nylon
NEMA Configuration
5-15
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Power Indicator
No
Sub-Category
Duplex Receptacles
HP
1/2 hp
Weather Resistant
No
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
Horsepower Rating
1/2 hp
GFCI
No
AFCI
No
Cover Type
No Cover
Market
Commercial, Industrial
Housing Material
Nylon
Surge Protection
No
Connection Orientation
Straight
Contact Material
Brass
Includes
Mounting Hardware
For Location
Indoor
Grade
Federal Specification
Polarized
Yes
Includes Mounting Hardware
Yes
Series
Extra Heavy Duty
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face
Application
Extra Heavy Duty Industrial Specification Grade
Wattage
1875

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
