Shop BRYANT

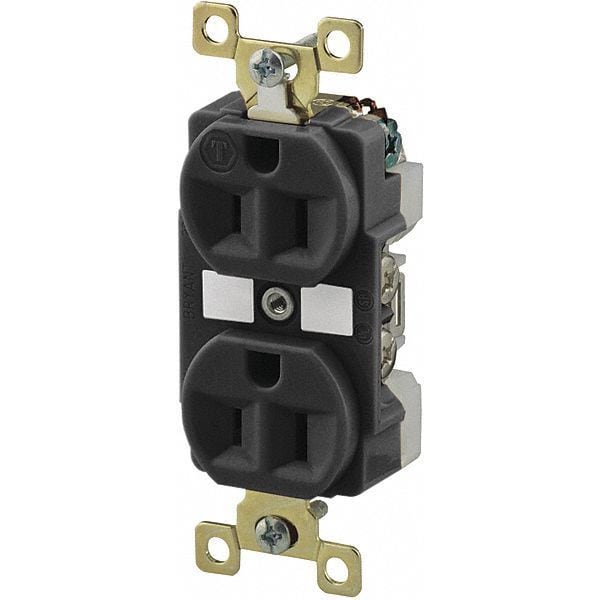

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5262BLKWR

  • Zoro # G4819285

product price:  $22.38
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BRY5262BLKWR
Zoro #
G4819285
UPC #
-
Country of Origin
China

Dimensions

Height
1.16 in
Width
1.54 in
Maximum Wire Size
12 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.5 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Resistance Properties
Corrosion Resistant, Weather Resistant
Flange Type
Non-Flanged
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
Corrosion Resistant
Yes
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Voltage
125VAC
Power Indicator
No
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
Yes
Special Features
Corrosion resistant
Mounting Type
Flush
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Harsh and Heavy Use Industrial
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Weather Resistant
Yes
Outlet Type
Duplex
Housing Material
Nylon
Surge Protection
No
Grade
Federal Specification
Market
Commercial, Industrial
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
GFCI
No
Polarized
Yes
Cover Type
No Cover
Includes
Mounting Hardware
Contact Material
Brass
AFCI
No
Connection Orientation
Straight
Nema Rating
5-15R
Style
Finder Groove Face
Application
Extra Heavy Duty Industrial Specification Grade
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Weather Resistant
Wattage
1875
IP Rating
IP20
Number of Wall Plates Included
0
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed, Voltage Rating 125V AC
