  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

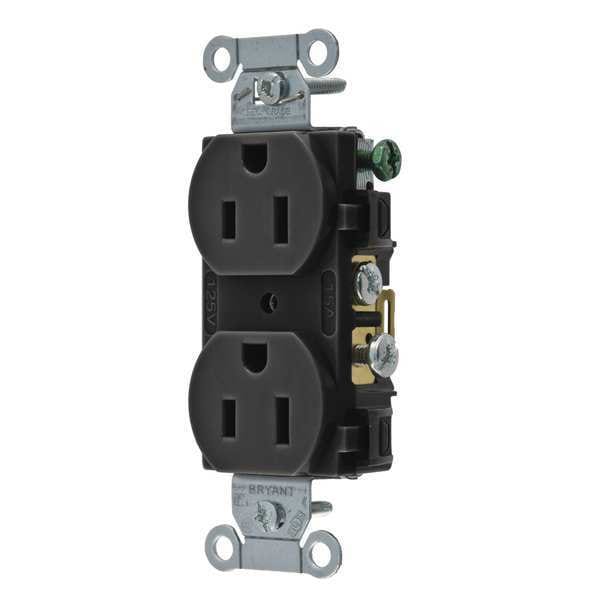

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CBRS15BLK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CBRS15BLK

  • Zoro # G4818935

product price: $5.25
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CBRS15BLK
Zoro #
G4818935
UPC #
00781786161139
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.38 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
4.1 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Material
Nylon
Tamper Resistant
No
Weather Resistant
No
Number of Gangs
1
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method
Back, Side
HP
1/2 hp
Special Features
Illuminated
Power Indicator
No
Connection Orientation
Straight
Housing Material
Composite
AFCI
No
For Location
Indoor
Includes
Mounting Hardware
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
Market
Commercial
Cover Type
No Cover
GFCI
No
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Surge Protection
No
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Smooth Face
Series
Commercial
Application
Commercial Specification Grade
Wattage
1875
Nema Rating
6-15R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
