  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

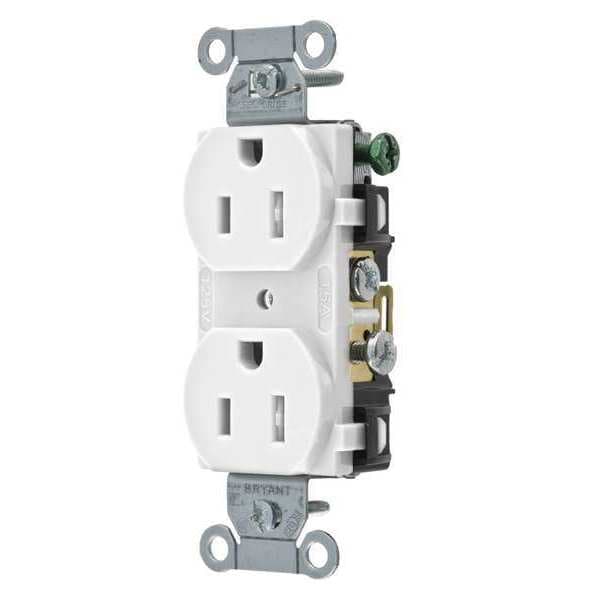

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CBRS15WTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CBRS15WTR

  • Zoro # G4818829

product price: $7.24
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CBRS15WTR
Zoro #
G4818829
UPC #
781786410657
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Weather Resistant
No
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Special Features
Corrosion resistant
Tamper Resistant
Yes
Outlet Type
Duplex
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Corrosion Resistant
Yes
Includes
Mounting Hardware
Housing Material
Composite
AFCI
No
For Location
Indoor
Market
Commercial
Surge Protection
No
Cover Type
No Cover
Connection Orientation
Straight
Grade
Federal Specification
GFCI
No
Horsepower Rating
1/2 hp
Polarized
Yes
Includes Mounting Hardware
Yes
Material - Mounting Hardware
Screw Mounting
Series
Commercial
Wattage
1875
Style
Smooth Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Application
Commercial Specification Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
