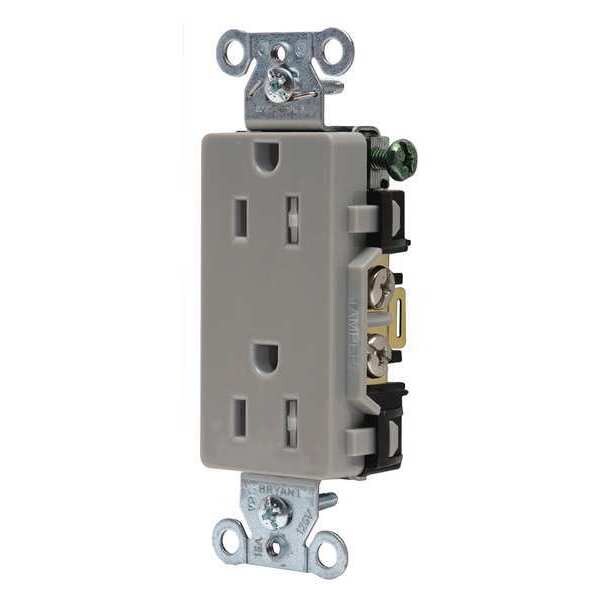

Bryant Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DRS15GRYTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DRS15GRYTR

  • Zoro # G4818655

product price: $10.23
/ea
Sold in multiples of 2 for $20.46

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DRS15GRYTR
Zoro #
G4818655
UPC #
781786144118
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Power Indicator
No
Mounting Type
Flush
Tamper Resistant
Yes
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Special Features
Corrosion resistant
Sub-Category
Decorator Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
Yes
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125VAC
Weather Resistant
No
Outlet Type
Decorator
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Connection Orientation
Straight
GFCI
No
Horsepower Rating
1/2 hp
Polarized
Yes
Market
Commercial, Industrial
AFCI
No
Housing Material
Composite
Grade
Federal Specification
Surge Protection
No
Includes
Mounting Hardware
For Location
Indoor
Includes Mounting Hardware
Yes
Cover Type
No Cover
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Decorator
Material - Mounting Hardware
Screw Mounting
Wattage
1875
Series
Commercial
Application
Commercial Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
