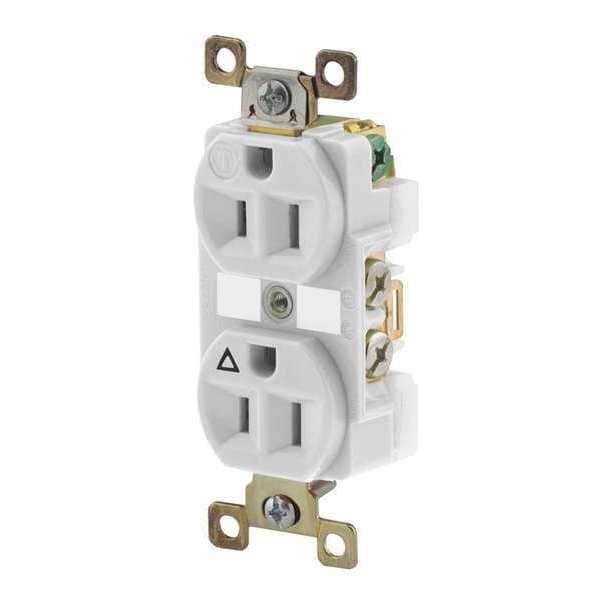

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # BRY5262IGW

  • Zoro # G4845401


product price: $28.44
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY5262IGW
Zoro #
G4845401
UPC #
781786005143
Country of Origin
China

Dimensions

Height
1.16 in
Width
1.54 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Face Plate Width
1.5 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Resistance Properties
Chemical Resistant, Heat Resistant, Impact Resistant
Flange Type
Non-Flanged
Special Features
Isolated Ground
Voltage
125VAC
Surge Suppression
No
Material
Nylon
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
HP
1/2 hp
Application Environment
Harsh and Heavy Use Industrial
Outlet Type
Duplex
Corrosion Resistant
No
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type
Flush
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Grade
Federal Specification
Contact Material
Brass
Polarized
Yes
Housing Material
Composite
Market
Commercial, Industrial
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
Surge Protection
No
AFCI
No
Cover Type
No Cover
Connection Orientation
Straight
Includes
Mounting Hardware
For Location
Indoor
GFCI
No
Series
Straight Blade
Application
Extra Heavy Duty Industrial Specification Grade
Wattage
1875
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face
Material - Mounting Hardware
Screw Mounting

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Isolated Ground, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Chemical Resistant, Heat Resistant, Impact Resistant
