  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

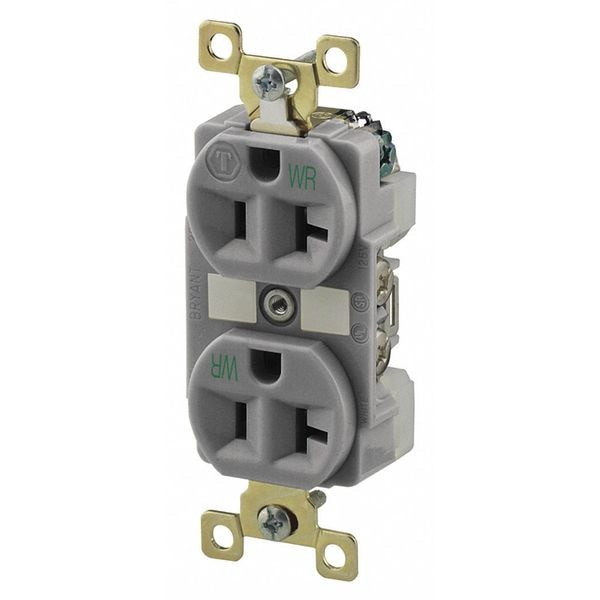

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BRY5362GRYWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5362GRYWR

  • Zoro # G4819179

product price: $26.00
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY5362GRYWR
Zoro #
G4819179
UPC #
-
Country of Origin
China

Dimensions

Face Plate Width
1.5 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in
Width
1.54 in
Height
1.16 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Resistance Properties
Corrosion Resistant, Weather Resistant
Flange Type
Non-Flanged
Number of Gangs
1
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
Harsh and Heavy Use Industrial
Weather Resistant - Plugs and Receptacles
Yes
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant
Yes
Outlet Type
Duplex
Mounting Type
Flush
Special Features
Corrosion resistant
Corrosion Resistant
Yes
HP
1 hp
Surge Suppression
No
Tamper Resistant
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Grade
Federal Specification
Housing Material
Nylon
Surge Protection
No
Cover Type
No Cover
AFCI
No
Connection Orientation
Straight
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Contact Material
Brass
Market
Commercial, Industrial
Polarized
Yes
Includes
Mounting Hardware
GFCI
No
Environmental Conditions
Weather Resistant
Wattage
2500
Series
Extra Heavy Duty
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-20R
Style
Finder Groove Face
Application
Extra Heavy Duty Industrial Specification Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Applicable, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant
