  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

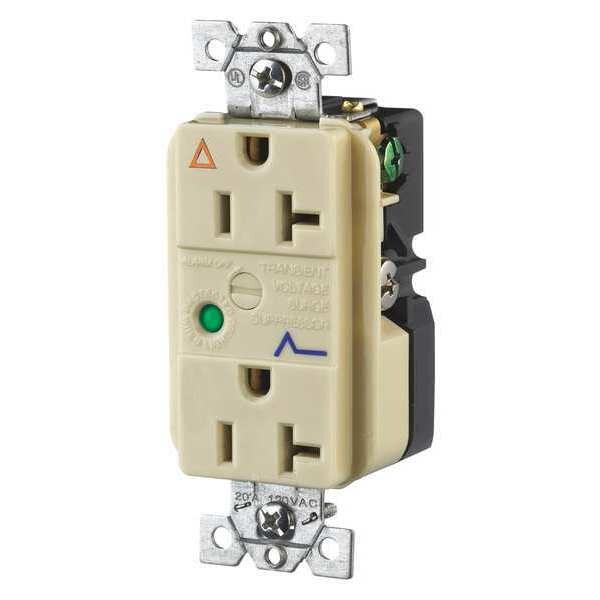

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground SP53IGIA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # SP53IGIA

  • Zoro # G4818585

product price: $78.25
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SP53IGIA
Zoro #
G4818585
UPC #
781786139183
Country of Origin
China

Dimensions

Face Plate Width
1.7 in
Overall Depth
4 in
Face Plate Height
2.8 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Decorator Receptacles
Mounting Type - Plugs and Receptacles
Flush
Color
Ivory
Surge Suppression
Yes
Item - Plugs and Receptacles
Isolated Ground Receptacle
Number of Gangs
1
Voltage - Plugs and Receptacles
125V AC
Material
Nylon
Amps - Plugs and Receptacles
20
HP
1 hp
Amps - Plugs and Receptacles
20 A
Application Environment
Commercial
Mounting Type
Flush
Corrosion Resistant
No
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Power Indicator
No
Color - Plugs and Receptacles
Ivory
Wiring Method - Plugs and Receptacles
Back and Side
Amps
20
Outlet Type - Plugs and Receptacles
Decorator Duplex
Special Features
Audible Alarm
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Decorator
Cover Type
No Cover
GFCI
No
Minimum Operating Temperature
32 Degrees F
Market
Commercial, Industrial
Includes
Mounting Hardware
Polarized
Yes
AFCI
No
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Grade
General Use
For Location
Indoor
Surge Protection
Yes
Housing Material
Composite
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Series
Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Outlet
Straight Blade
Material - Mounting Hardware
Mounting Screws
Nema Rating
5-20R
Response Time
5
Style
Isolated Ground
Frequency Rating
60 Hz
Indicator(s) Type
LED and Audible Alarm
Connectivity
Terminal Screws
Application
IG Duplex with Light and Alarm
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Composite, Mount Type Flush, NEMA Enclosure Rating Not Applicable, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant
