  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

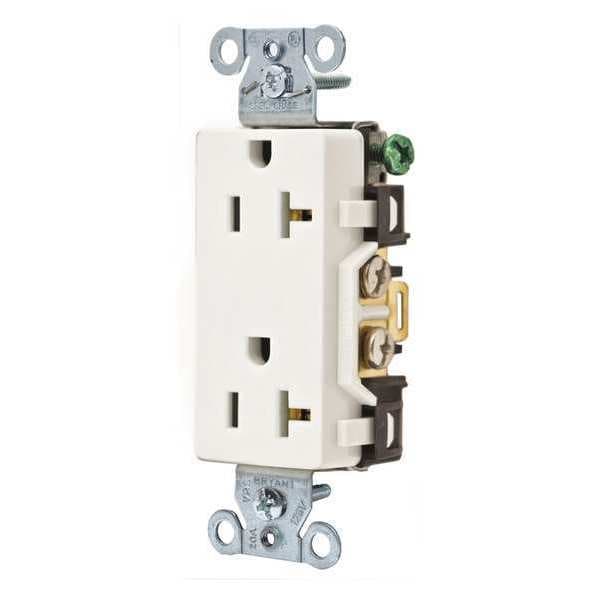

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded DRS20WHI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # DRS20WHI

  • Zoro # G4845051

product price: $7.09
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DRS20WHI
Zoro #
G4845051
UPC #
781786410572
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.38 in
Face Plate Height
2.7 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
4.1 in
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Material
Nylon
Power Indicator
No
Outlet Type
Decorator
Corrosion Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Decorator Duplex
Number of Gangs
1
Voltage
125VAC
Special Features
Corrosion resistant
HP
1 hp
Weather Resistant
No
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Decorator Receptacles
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
For Location
Indoor
Contact Material
Brass
Market
Commercial, Industrial
Includes Mounting Hardware
Yes
Polarized
Yes
Surge Protection
No
Grade
Federal Specification
Includes
Mounting Hardware
Horsepower Rating
1 hp
AFCI
No
GFCI
No
Housing Material
Composite
Cover Type
No Cover
Connection Orientation
Straight
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500
Nema Rating
5-20R
Style
Decorator
Material - Mounting Hardware
Screw Mounting
Application
Commercial Grade
Series
Commercial

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
