  11. Straight Blade Receptacle, 5-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

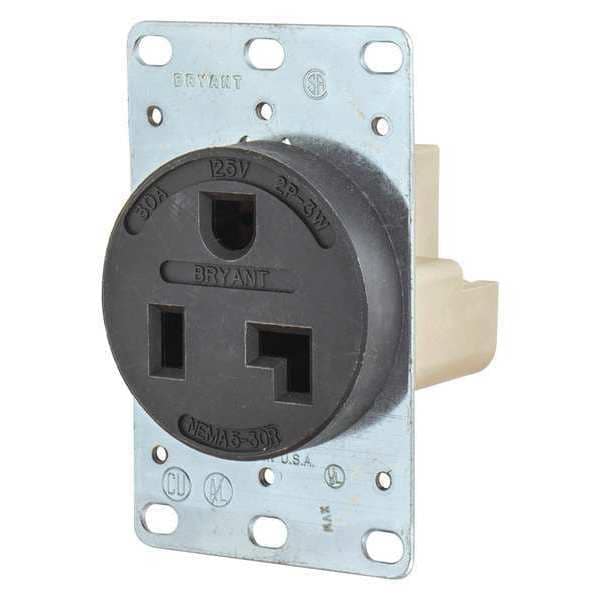

Bryant Straight Blade Receptacle, 5-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 9530FR - main

Straight Blade Receptacle, 5-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 9530FR

  • Zoro # G4438379

product price: $32.15
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-30R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9530FR
Zoro #
G4438379
UPC #
781786676732
Country of Origin
United States

Dimensions

Minimum Wire Size
10 AWG
Overall Depth
2.3 in
Maximum Wire Size
6 AWG
Face Plate Width
2.3 in
Face Plate Height
3.7 in
Display Size
Standard Sized Product
Wire Size
#10 AWG to #6 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Outlet Type
Single
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Material
Thermoplastic Polymer
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-30R
Voltage
125VAC
Sub-Category
Single Receptacles
HP
2 hp
NEMA Configuration
5-30
Number of Gangs
1
Surge Suppression
No
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Single
Application Environment
Industrial
Market
Commercial, Industrial
Cover Type
No Cover
Surge Protection
No
GFCI
No
Grade
General Use
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
AFCI
No
Horsepower Rating
2 hp
Housing Material
Thermoplastic
Polarized
Yes
Connection Orientation
Straight
For Location
Indoor
Style
Smooth Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Industrial Grade
Nema Rating
5-30R
Material - Mounting Hardware
Screw Mounting
Wattage
3750
Series
Heavy Duty

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, AFCI No
