  11. Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

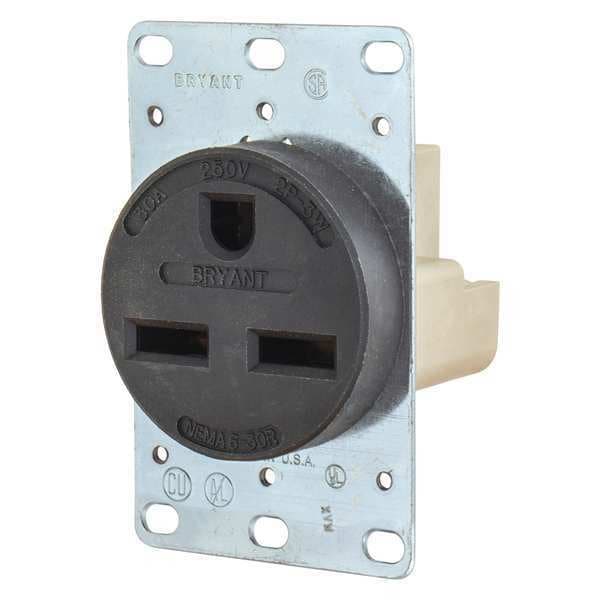

Bryant Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 9630FR - main

Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 9630FR

  • Zoro # G4438351

product price: $29.44
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9630FR
Zoro #
G4438351
UPC #
781786677289
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Face Plate Height
3.7 in
Face Plate Width
2.3 in
Minimum Wire Size
10 AWG
Overall Depth
2.3 in
Display Size
Standard Sized Product
Wire Size
#10 AWG to #6 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Single Receptacles
Application Environment
Industrial
Surge Suppression
No
Number of Gangs
1
Weather Resistant
No
Corrosion Resistant
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
6-30R
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back
Outlet Type
Single
Tamper Resistant
No
HP
2 hp
Outlet Type - Plugs and Receptacles
Single
Material
Thermoplastic Polymer
Voltage
250VAC
Polarized
Yes
Grade
General Use
GFCI
No
Market
Commercial, Industrial
Horsepower Rating
2 hp
Includes
Mounting Hardware
For Location
Indoor
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Cover Type
No Cover
Surge Protection
No
AFCI
No
Connection Orientation
Straight
Nema Rating
6-30R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Smooth Face
Material - Mounting Hardware
Screw Mounting
Application
Industrial Grade
Wattage
7500
Series
Heavy Duty

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 6-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, AFCI No
