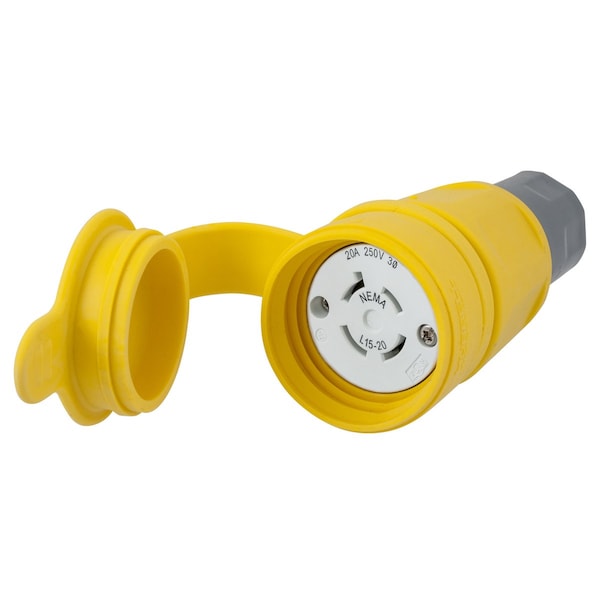

Watertight Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow
Mfr # BRY27W75
Zoro # G104391988
product price:Â
$
105.99
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BRY27W75
- Zoro #
- G104391988
- UPC #
- 781786378599
- Country of Origin
- United States
Dimensions
- Length
- 2.51 in
- Wire Size
- Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S
- Height
- 5.69 in
- Width
- 2.51 in
- For Maximum Cable Diameter
- 0.875 in
- For Minimum Cable Diameter
- 0.375 in
Details
- Item
- Watertight Locking Connector
- NEMA Receptacle Configuration
- L15-20R
- Current Rating
- 20 A
- Voltage Rating
- 250V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Connection Orientation
- Straight
- Grounding
- Grounded
- Housing Color
- Yellow
- Cap Type
- Floating Cap
- Standards
- ANSI Standards, CSA C22.2 No. 42, IP69K, NEMA WD-1, UL498, WD-6
- Resistance Properties
- Moisture Resistant, UV/Sunlight Resistant
- IP Rating
- IP69K
- Performance
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors)
- Amperage Rating
- 20 A
- Features
- Smooth body design minimizes collection points simplifying the wash down process; Free-floating cap allows unwanted material to wash away during sanitation; Unique cone seal prevents dirt and debris from collecting at the cable entrance; PBT strain relief nut provides unparalleled impact resistance
Description
Locking Devices, Elastomeric, Female Connector Body, 20A 3-Phase Delta 250V AC, L15-20R, Screw Terminal, Water/Dust-Tight Housing
