  11. Watertight Pin & Sleeve Connector, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red

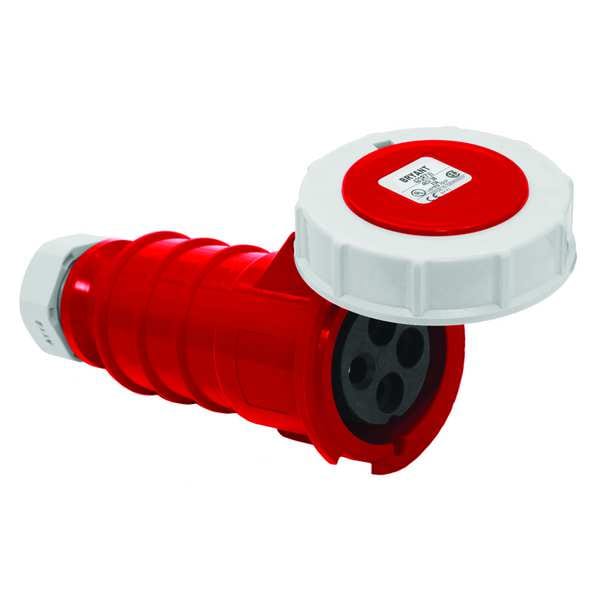

Bryant Watertight Pin & Sleeve Connector, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red BRY420C7W - main

Watertight Pin & Sleeve Connector, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red

  • Mfr # BRY420C7W

  • Zoro # G4439219

product price: $162.50
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY420C7W
Zoro #
G4439219
UPC #
781786251038
Country of Origin
Germany

Dimensions

For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.50 in
Maximum Wire Size
10 AWG
Overall Length
7.9 in
Minimum Wire Size
14 AWG
Size
Standard
Wire Size
#14 AWG to #12 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
IEC 309-1, IEC 309-2, UL 498
Resistance Properties
Watertight
HP
5 hp
Body Material - Pin and Sleeve
Nylon
Features
Sleet Resistant
Power Indication
No
Body Material
Nylon
Maximum Operating Temperature
75 Degrees C
Hazardous Location Specification
Not Rated
Horsepower Rating
5 hp
Housing Material
Composite
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Reverse Service
No
Power Indicating Light
No
Material
PBT
Application
High Ampacity Connections
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, CE
Environmental Conditions
IP67
Dielectric Strength
Withstand 3000V AC
Series
Watertight IP67
Mounting Type
Cord Mounted
Insulation
Insulated Body
Ingress Protection
IP67
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Description

Watertight Pin and Sleeve Connector, Current Rating 20 A, Grounding Style IEC, Horsepower Rating 5 hp, Housing Color Red, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Watertight, Switch Rated No, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 1.25 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Composite
