  11. Watertight Pin & Sleeve Connector, 60 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue

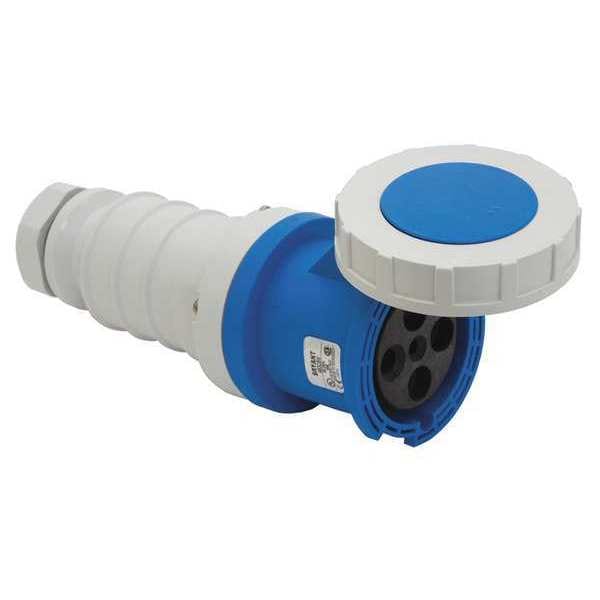

Bryant Watertight Pin & Sleeve Connector, 60 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue BRY560C9W - main

Watertight Pin & Sleeve Connector, 60 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue

  • Mfr # BRY560C9W

  • Zoro # G4571555

product price: $430.00
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY560C9W
Zoro #
G4571555
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Cable Diameter
1.45 in
For Minimum Cable Diameter
0.83 in
Overall Length
11.15 in
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
Wire Size
#6 AWG to #4 AWG
Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
IEC 309-1, IEC 309-2, UL 498
Resistance Properties
Watertight
HP
3 hp
Power Indication
No
Body Material - Pin and Sleeve
Nylon
Body Material
Nylon
Features
Sleet Resistant
Power Indicating Light
No
Shrouded
Yes
Horsepower Rating
3 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Reverse Service
No
Housing Material
Composite
Hazardous Location Specification
Not Rated
Market
Industrial
Material
PBT
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
High Ampacity Connections
Environmental Conditions
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Insulation
Insulated Body
Dielectric Strength
Withstand 3000V AC
Series
Watertight IP67
Ingress Protection
IP67
Mounting Type
Cord Mounted

Description

Pin and Sleeve Connector, Current Rating 60 A, Grounding Style IEC, Horsepower Rating 3 hp, Housing Color Blue, IP Rating IP67, Number of Poles 4, Number of Wires 5, Phase Three, Resistance Properties Watertight, Switch Rated No, Voltage Rating 120/208V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 1.45 in, For Minimum Cable Diameter 0.83 in, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Material Composite
