  11. Watertight Pin & Sleeve Receptacle, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

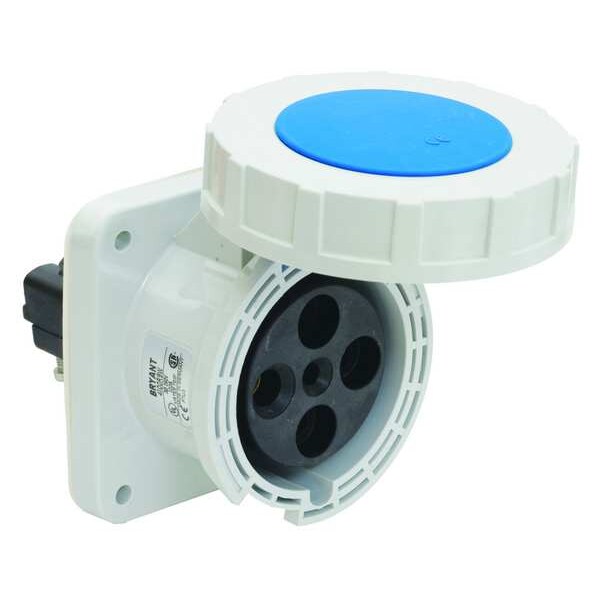

Bryant Watertight Pin & Sleeve Receptacle, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue BRY4100R9W - main

Watertight Pin & Sleeve Receptacle, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

  • Mfr # BRY4100R9W

  • Zoro # G4571485

product price: $410.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY4100R9W
Zoro #
G4571485
UPC #
781786250888
Country of Origin
Germany

Dimensions

Minimum Wire Size
3 AWG
Maximum Wire Size
1/0 AWG
Wire Size
#4 AWG to #1 AWG
Size
Standard

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & SleeV ACe Configurations, V ACDE, CE
Resistance Properties
Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Shatter and Crack Resistant, Warp Resistant, Watertight
Body Material - Pin and Sleeve
Nylon
Grounding Style
IEC
Power Indication
No
Body Material
Nylon
HP
10 hp
Switch Rated
No
Features
Neoprene Sealing Glands
Material
PBT
Number of Gangs
1
Flange Type
Flanged
Reverse Service
No
Housing Material
Composite
Shrouded
Yes
Horsepower Rating
10 hp
Connection Orientation
Straight
Market
Industrial
Power Indicating Light
No
Dielectric Strength
Withstand 3000V AC
Environmental Conditions
IP67
Ingress Protection
IP67
Insulation
Insulated Body
Application
High Ampacity Connections
Mounting Type
Screw Mount
Series
Watertight IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Description

Watertight Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP67, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 250V, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 10 hp, Housing Color Blue, Housing Material Composite, Market Industrial, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG
