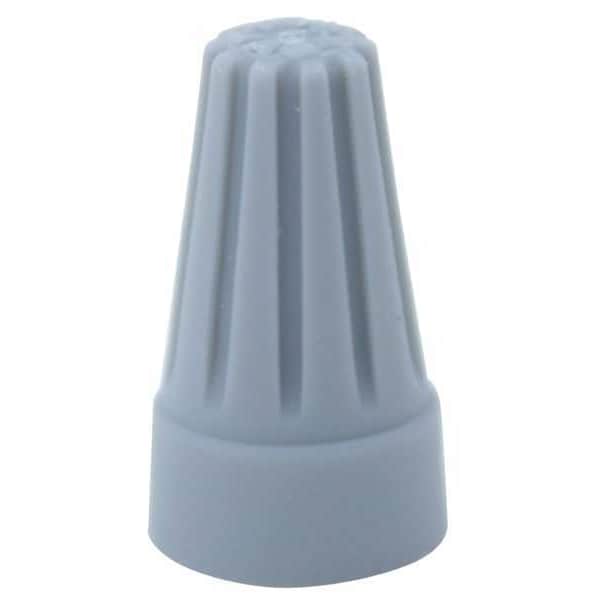

Twist-On Wire Connector, 14 AWG Max, Gray, Polypropylene Insulation, 300 V, 100 PK
Mfr # WT1-1
Zoro # G2013593
product price: $7.39
/pk 100, $0.07/eaKey Features
Type
Twist-On
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Insulation Material
Polypropylene
Maximum Voltage
300 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WT1-1
Zoro #
G2013593
UPC #
781789610009
Country of Origin
Canada
Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Width
0.32 in
Height
0.33 in
Overall Width
0.32 in
Details
Item
Twist-On Wire Connector
Type
Twist-On
Color
Gray
Insulation Material
Polypropylene
Maximum Voltage
300 V
Minimum Wire Combination
(3) 22 AWG
Maximum Wire Combination
(2) 16 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Application
General Purpose
Series
WT1
Standards
CSA Certified, UL Listed
Wire Connector Style
Standard
Special Features
Deep Skirt Protects Against Flash-Over, Fixed, Square-Wire Spring Creates Secure Connections, Positive Grip Shell Design for Fast, Easy Installation
Maximum Conductors
5
For Conductor Material
Copper
Material
Steel
Termination Style
Twist-On
Description
Twist-On Wire Connectors, Color Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (3) 22 AWG, Maximum Wire Combination (2) 16 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG
