  11. Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 500 PK

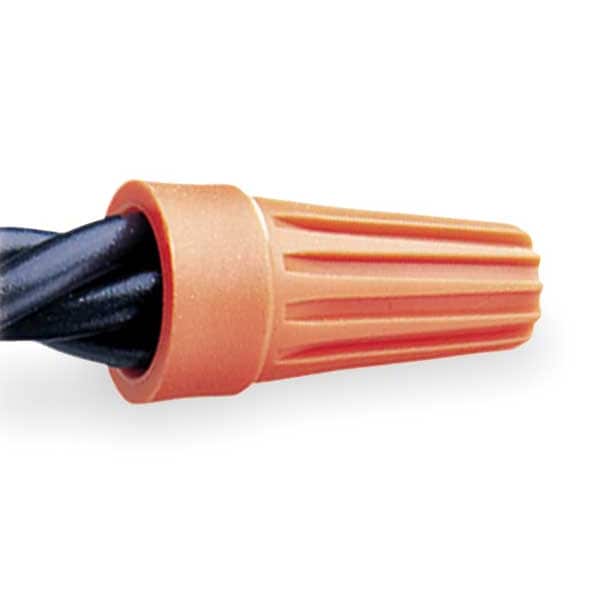

Buchanan Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 500 PK WT3-B - main

Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 500 PK

  • Mfr # WT3-B

  • Zoro # G1433582

product price: $34.39
/pk 500, $0.07/ea

Key Features

Type
Twist-On
Color
Orange
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Insulation Material
Polypropylene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WT3-B
Zoro #
G1433582
UPC #
781789610054
Country of Origin
Canada

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Height
0.44 in
Width
0.44 in
Outside Diameter
0.45 in
For Minimum Wire Size - Solid
22 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Orange
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(2) 18 AWG
Maximum Wire Combination
(2) 14 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
Application
General Purpose
Series
WT3
Wire Connector Style
Standard
Standards
CSA Certified, UL Listed
Special Features
Deep Skirt Protects Against Flash-Over, Fixed, Square-Wire Spring Creates Secure Connections, Positive Grip Shell Design for Fast, Easy Installation
For Conductor Material
Copper
Maximum Conductors
5
Material
Steel
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG
