Shop BUNTING BEARINGS

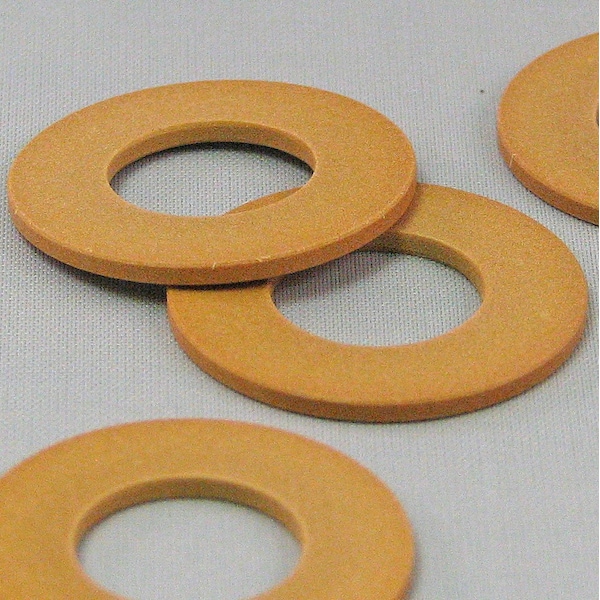

J5500 Thrust Washer, 1" I.D. x 1/8" L

  • Mfr # BJ5T163204

  • Zoro # G4670622

product price:  $8.19
/ea

Key Features

Inside Dia. (In.)
1 in
Inside Dia. (mm)
25.4 mm
Outside Dia. (In.)
2 in
Outside Dia. (mm)
50.8 mm
Thickness (In.)
0.125 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BJ5T163204
Zoro #
G4670622
UPC #
717905199547
Country of Origin
United States

Dimensions

Inside Dia. (In.)
1 in
Inside Dia. (mm)
25.4 mm
Outside Dia. (In.)
2 in
Outside Dia. (mm)
50.8 mm
Thickness (In.)
0.125 in
Thickness (mm)
3.17 mm
Outside Diameter
2 in
Thickness
1/8 in
Nominal Outside Dia.
2 in
Nominal Inside Dia.
1 in
Maximum Inside Diameter
1.011 in
Max. Outside Dia.
2.006 in
Min. Inside Dia.
1.005 in
Min. Outside Dia.
2 in
Washer Thickness
0.125 in
Bore Diameter
1 in

Details

Construction Material
PTFE ( JLON 5500 )
Item
Plain Bearing Thrust Washer
Standards
ISO Certified 9001
Color
Orange
System of Measurement
Inch
Max. Pv
20,000 lb/sq in-fpm
Maximum Temperature
550 Degrees F
Minimum Temperature
-250 Degrees F
Plain Bearing Material
PTFE
Maximum PV
20,000 lb/sq in-fpm
Thickness Tolerance
+/-0.003 in
Resistance Properties
Wear-Resistant
Material Grade
JLON 5500
Material Group
Plastic
For Environment
Extreme High Temperature, Extreme Low Temperature

Description

Plain Bearing Thrust Washer, Bore Diameter 1 in, For Environment Extreme High Temperature, Extreme Low Temperature, Material Group Plastic, Maximum Temperature 550 Degrees F, Minimum Temperature -250 Degrees F, Outside Diameter 2 in, Plain Bearing Material PTFE, System of Measurement Inch, Washer Thickness 0.125 in, Color Orange, Material Grade JLON 5500, Maximum PV 20,000 lb/sq in-fpm, Resistance Properties Wear-Resistant, Standards ISO Certified 9001, Thickness Tolerance +/-0.003 in

Restrictions

WARNING: This product can expose you to chemicals including Tetrafluoroethylene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
