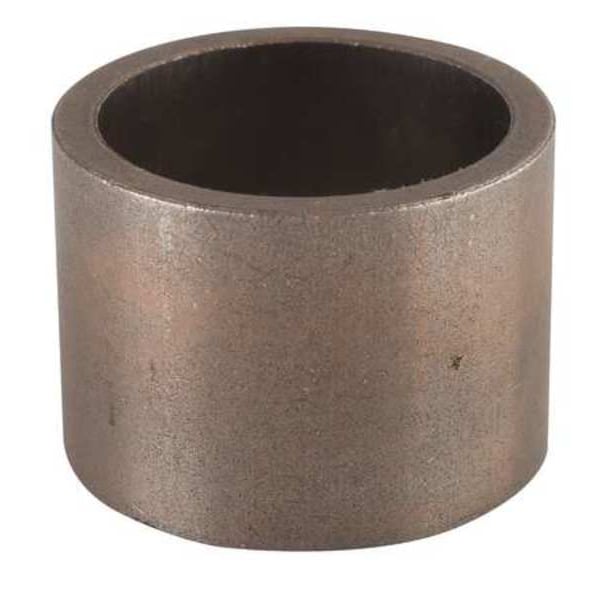

Sleeve Bearing, I.D. 2, L 2

  • Mfr # BBEP323632

  • Zoro # G4172603


product price: $18.15
/ea

Key Features

Inside Dia.
2 in
Outside Dia.
2 1/4 in
Length
2 in
Material
Metal
Temp. Range (F)
10 Degrees to 220 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BBEP323632
Zoro #
G4172603
UPC #
717905249983
Country of Origin
United States

Dimensions

Inside Dia.
2 in
Outside Dia.
2 1/4 in
Length
2 in
Outside Diameter
2 1/4 in
Overall Length
2 in
Length Tolerance
+/-0.01 in
Bore Diameter
2 in

Details

Item
Sleeve Bearing
Material
Metal
Temp. Range (F)
10 Degrees to 220 Degrees F
Max. Pv
75,000 lb/sq in-fpm
Lubrication
SAE 85-140 Oil
Color
Iron
System of Measurement
Inch
Minimum Temperature
10 Degrees F
Maximum Temperature
220 Degrees F
Flange Type
Non-Flanged
Application
Automotive and Railroad Applications, Backhoes, Earth-Moving Equipment, Escalators, Graders, Heavily Loaded Applications, Off-Road Equipment
Lubrication Type
Self Lubricating
Maximum PV
75,000 lb/sq in-fpm
Lubricant Material
SAE 85-140 Oil
Resistance Properties
Wear Resistant
Material Grade
BB-16
Plain Bearing Material
Iron-Copper
Lubrication Method
Embedded

Description

Sleeve Bearing, Bore Diameter 2 in, Flange Diameter Not Applicable, Flange Type Non-Flanged, Lubricant Material SAE 85-140 Oil, Lubrication Type Self Lubricating, Material Group Metallic, Maximum Temperature 220 Degrees F, Minimum Temperature 10 Degrees F, Outside Diameter 2 1/4 in, Overall Length 2 in, Plain Bearing Material Iron-Copper, System of Measurement Inch
