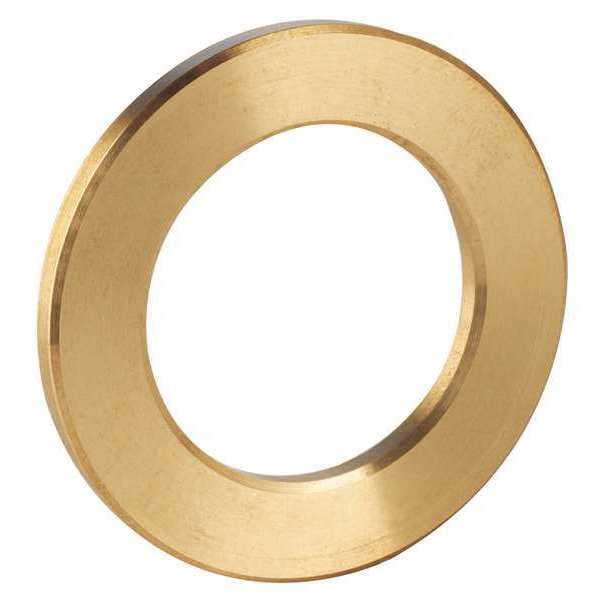

Thrust Washer, 0.750" I.D., 1.250" O.D.
Mfr # EBTW122002
Zoro # G5908449
product price: $9.59
/eaKey Features
Inside Dia. (In.)
0.75 in
Outside Dia. (In.)
1.25 in
Thickness (In.)
0.125 in
Construction Material
Bronze ( C87850 )
Agency Compliance
NSF 372, NSF 61, RoHS
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EBTW122002
Zoro #
G5908449
UPC #
717905304583
Country of Origin
United States
Dimensions
Inside Dia. (In.)
0.75 in
Outside Dia. (In.)
1.25 in
Thickness (In.)
0.125 in
Nominal Inside Dia.
3/4 in
Thickness
1/8 in
Nominal Outside Dia.
1 1/4 in
Max. Outside Dia.
1.255 in
Min. Inside Dia.
0.745 in
Maximum Inside Diameter
0.755 in
Min. Outside Dia.
1.245 in
Bore Diameter
3/4 in
Washer Thickness
0.125 in
Outside Diameter
1 1/4 in
Description
Thrust Washer, Bore Diameter 3/4 in, Bronze Material Type Lead-Free Cast Bronze, Lubricant Material SAE 50 Oil, Material Group Metallic, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Outside Diameter 1 1/4 in, Plain Bearing Material Bronze, System of Measurement Inch, Washer Thickness 0.125 in, Material Grade C87850, Maximum PV 100,000 lb/sq in-fpm, Resistance Properties Corrosion Resistant, Standards ASTM B505, Lead-Free, RoHS Certified, Thickness Tolerance +/-0.005 in
