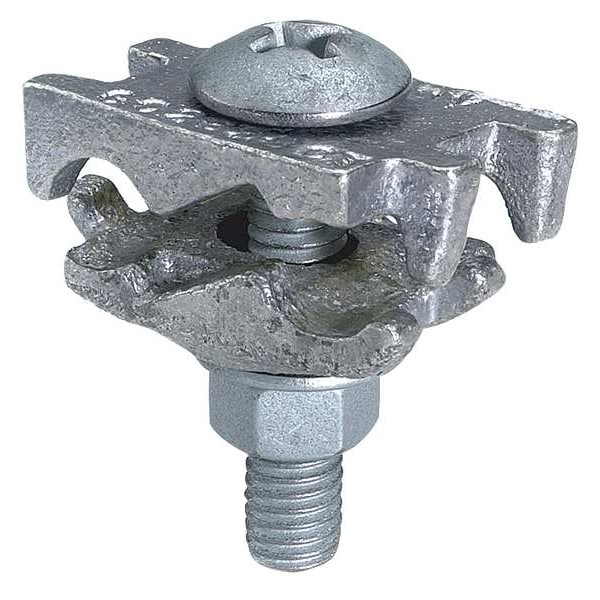

Burndy Cabletray Ground Clamp, 2AWG, 1.95In GC2626CT - main

Cabletray Ground Clamp, 2AWG, 1.95In

  • Mfr # GC2626CT

  • Zoro # G4677041

product price: $38.35
/ea

Key Features

Item - Grounding Connector
Cable Tray Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Wire Size - Grounding
2 to 2/0 AWG
Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GC2626CT
Zoro #
G4677041
UPC #
781810220573
Country of Origin
Mexico

Dimensions

Wire Size - Grounding
2 to 2/0 AWG
Conductor Size
2/0 AWG to 2 AWG
Grounding Wire Size
2 to 2/0 AWG SOL, 2 to 2/0 AWG STR
Overall Width
1 11/16 in
Overall Length
1 1/8 in
For Minimum Ground Conductor Wire Size
4 AWG SOL
For Maximum Ground Conductor Wire Size
2/0 AWG STR
Overall Height
1 15/16 in
Dimension - Width inch
1.70 in
Conductor - Copper Str Size Range
2 AWG-2/0 AWG
Dimension - B Length inch
1.12 in
Dimension - Width mm
43 mm
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - Copper Solid Size Range
2 AWG-2/0 AWG
Conductor - Copper Solid Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG
Dimension - Cross Flats inch
0.56 in
Conductor - AL Str Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG
Dimension - Height inch
1.95 in
Conductor - AL Str Size Range
2 AWG-2/0 AWG

Description

Cable Tray Grounding Connector, Grounding Wire Size 2 to 2/0 AWG SOL, 2 to 2/0 AWG STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, Ribbed Neck Bolt, For Maximum Ground Conductor Wire Size 2/0 AWG STR, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Aluminum Conductor, Cable Tray, Copper Conductors, Flat Bar, Grounding Wires Connected To Cable Tray, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
