  11. Compression Adapter, 500 kcmil Max, Standard Barrel, Aluminum, Pink

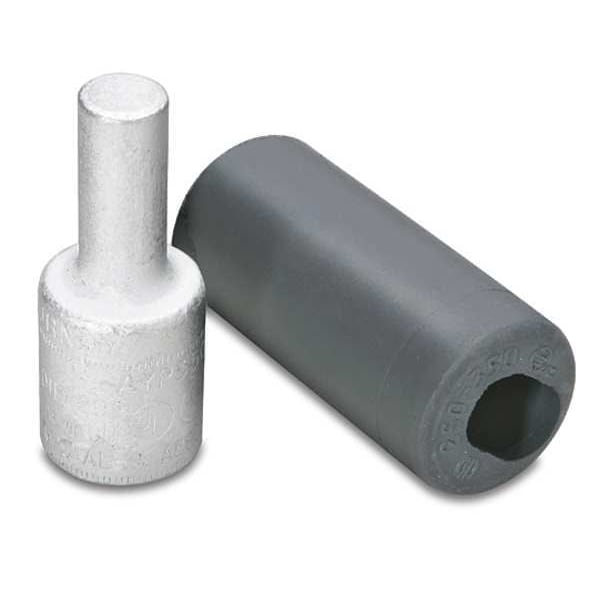

Burndy Compression Adapter, 500 kcmil Max, Standard Barrel, Aluminum, Pink AYP500 - main

Compression Adapter, 500 kcmil Max, Standard Barrel, Aluminum, Pink

  • Mfr # AYP500

  • Zoro # G4657536

product price: $57.75
/ea

Key Features

For Wire Size
500 kcmil
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
300
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYP500
Zoro #
G4657536
UPC #
781810556368
Country of Origin
United States

Dimensions

For Wire Size
500 kcmil
Barrel Size
Standard
Diameter
11/16 in
Max. Wire Size
500 kcmil
Length
3.08 in
Width
1.46 in
Min. Wire Size
4/0 AWG
Length (Straight Wireway)
3.08 in
Strip Length
1 1/8 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Pin Length
1.6 in
Overall Length
3.08 in
Barrel Diameter
1.46 in
Pin Diameter
0.688 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Barrel Length
1.07 in
For Stranded Aluminum Wire Size - Maximum
500 kcmil
Pin Equivalent Wire Size
350 kcmil
Equivalent Pin Size
350 kcmil
Conductor - Copper DLO Size
373 KCMIL
Conductor - AL Str Size Range
500 kcmil
Conductor - Copper DLO Size Range
373 kcmil
Dimension - Length Overall inch
3.08 in
Conductor Size
500 KCMIL
Dimension - B Length inch
1.07 in
Conductor - Copper Flex I Size
500 KCMIL
Conductor - Copper Str Compact Size
500 KCMIL
Dimension - P inch
1.60 in
Conductor - Copper Str Size Range
500 kcmil
Dimension - A Outside Diameter inch
1.31 in
Dimension - B Outside Diameter inch
0.68 in
Conductor - Copper Str Size
500 KCMIL
Dimension - B Length fraction
1-1/16 in
Dimension - L Length Overall mm
78 mm
Dimension - Strip Length inch
2008-01-01
Conductor - Copper Flex I Size Range
500 kcmil
Conductor - AL Str Size
500 KCMIL
Maximum Wire Size
500 kcmil
Minimum Run Wire Size
4/0 AWG
For Maximum Wire Size - Stranded
500 kcmil
Maximum Run Wire Size
500 kcmil
For Minimum Wire Size - Stranded
500 kcmil

Description

Compression Pin Terminal, Connection Orientation Straight, Die Code 300, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.688 in, Pin Equivalent Wire Size 350 kcmil, Pin Length 1.6 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.46 in, Barrel Length 1.07 in, Color Code Pink
